Overview and classification
The Type 92 Jyu-Sokosha was a small tracked vehicle developed for Japanese cavalry requirements. Its translated designation, Heavy Armoured Car, is misleading when read as a modern weight or running-gear classification: the vehicle discussed here was a roughly 3.5-tonne tankette, not a large wheeled armored car. It carried three crew and combined light protection with machine-gun armament in a compact hull and turret. Sources
Published accounts describe the name as part of the cavalry's institutional setting. The vehicle offered a way of giving reconnaissance and security formations protected cross-country mobility, but did not possess the firepower or protection of a conventional gun tank. Those subjects cannot be combined into a specification that no single Type 92 actually possessed. Sources
Background and development
Operations across Manchuria and northern China gave Japanese mechanization a particular practical problem: long distances and poor roads made a protected tracked scout attractive. Accounts place the Type 92 in the international interest in small, relatively inexpensive armored vehicles and describes British Carden-Loyd influence. The exact procurement and knowledge-transfer sequence remains a secondary-source research question, rather than a demonstrated chain from one British vehicle to every Japanese component. Sources
Development is associated with Ishikawajima and with the early 1930s, while 1932 supplies the designation and the project's sorting year. Design work, acceptance and manufacture are separate dates. The amphibious experiment belongs to the surrounding development story, but its detailed sequence and connection to the production vehicle remain unconfirmed. Sources
The small design was not mechanically static. Early service revealed difficulties with the running gear and track retention. Later photographs show a revised suspension arrangement, while changes in weapon fit increased the available firepower. A photographed modification describes a particular vehicle state rather than an additional production program or equipment fitted from the beginning. Sources
Hull, turret and crew arrangement
The hull provided positions for the driver and a forward gunner, with the commander working in the small turret. This arrangement gave the three crew distinct jobs, but it still imposed demanding observation and weapon-handling tasks on the commander. The front weapon and turret weapon also had different arcs and purposes; describing both simply as a pair of machine guns conceals an important layout distinction. Sources
The working armor range is approximately 6–12 mm, with the usual caution that a range combines different plates rather than describing uniform protection. Light construction helped keep the vehicle small, but left limited protection against heavier weapons. The turret did not turn the tankette into a cannon-armed light tank. Space, vision and access remained constrained by the compact body. Sources
Armament changes and uncertain experiments
Early descriptions give rifle-caliber machine guns in both the hull and turret. A later configuration combined a 13.2 mm weapon in the hull with the smaller turret gun. Further accounts describe a 7.7 mm turret weapon, but disagree over its Type 96 or Type 97 designation. Published accounts give that disagreement rather than assigning one exact model to every late photograph. Sources
Claims for 20 mm and 37 mm installations are less secure. They belong in the experimental register with their stated certainty, not in an unqualified production armament panel. A proposed or trial-mounted larger weapon is not necessarily evidence of routine service issue. Sources
Ammunition capacity and detailed sight arrangements are not firmly established. The absence of a documented stowage figure remains unresolved. It cannot be filled by copying the capacity of a later Japanese tankette or by estimating what might fit inside a photographed compartment. Sources
Power, mobility and maintenance
The published ordinary power reference is about 45 hp, but engine descriptions vary among accounts and manufacturer names. Those variations have not yet been demonstrated to represent separate installed engine types. The reported specifications therefore preserve the competing descriptions instead of inventing a chronological engine-upgrade sequence. Sources
The low weight and tracked running gear promised useful mobility, but reliability was an important limitation. Early and late vehicles had different wheel arrangements. Track shedding and suspension changes are central to understanding the vehicle's development, not incidental details to be hidden behind a single maximum-speed figure. Sources
Maximum road performance, practical cross-country movement and sustained operating range describe different conditions. The small crew also had to observe, operate the weapons and maintain the vehicle. No universal radio installation is established in the available accounts. Communication, visibility and maintenance therefore remain part of the technical assessment alongside nominal power and armor thickness. Sources
Manufacture and the family register
Approximately 167 vehicles are the recurring production figure in the cited sources, but the manufacturing endpoint varies. One project record uses 1932–1936, while several summaries extend the span to 1939. The material does not establish whether this difference reflects manufacture, acceptance, refit activity or an error. Published accounts describe the discrepancy rather than choosing a plausible explanation as fact. Sources
The early configuration, rearmed vehicles and revised suspension belong within one family history. An individual vehicle photographed after modification is not an additional tank built. There is no established licensed overseas production program in the available accounts, and cost figures remain insufficiently documented. Sources
Japan is the principal operator. Manchukuo allocations, particular Korean deployments and alleged postwar Chinese use carry weaker evidence. Possession, capture and operational employment refer to distinct categories; the appearance of a tankette in a photograph does not establish the size or duration of an independent armored unit. Sources
Service and historical significance
Accounts place the Type 92 in Japanese operations in Manchuria and China, including secondary accounts associated with Harbin and Rehe. Those campaign references provide a framework for further unit-level research, but not a complete engagement or loss ledger. Later imagery also supports investigation of continued theater use after newer Japanese light armored vehicles had appeared. Sources
Its limitations were those of a lightly protected, machine-gun-oriented cavalry vehicle. It could support particular reconnaissance, security and infantry tasks, but cannot be judged as though it had been designed to fight well-armed enemy tanks on equal terms. The comparison with later Japanese tankettes is useful for development history, not justification for merging the different families. Sources

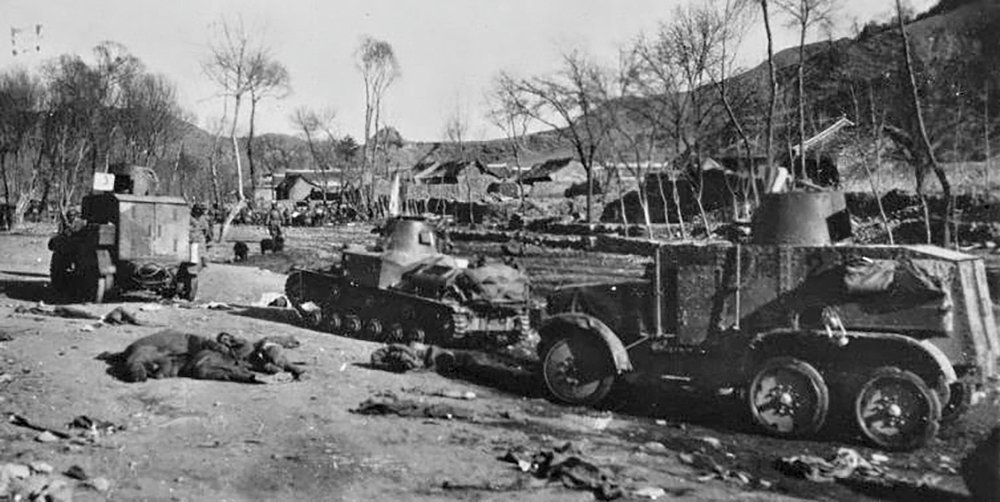

The visual record needs similar restraint. Prototype, production, late-suspension, amphibious and mixed-column photographs are not interchangeable views of one fixed standard. In particular, a wheeled Type 92 sharing a convoy with the tracked vehicle is a different design, despite the coincident designation. The available evidence does not establish a verified complete surviving example, so any such claim remains open. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- Tank-AFV, "Type 92 Jyu-Sokosha Tankette (1932)" — May 31, 2026
- Tank Encyclopedia, "WW2 Japanese Tanks" / Japan overview — May 31, 2026
- Military Factory, "Type 92 Jyu-Sokosha" — May 31, 2026
- World War II Database, "Type 92 Jyu-Sokosha Tankette" — May 31, 2026
- Tank Encyclopedia, "China (1925-1950)" — May 31, 2026
- Wikimedia Commons, "Category:Type 92 Heavy Armoured Car" — May 31, 2026
- Taki's Imperial Japanese Army Page — Attempted May 31, 2026
