An emergency proposal, not a combat tank fleet
The Schofield tank was a New Zealand wheel-and-track experiment developed under the pressures of wartime defense and uncertain access to imported equipment. Its history belongs to prototype design, trials and evaluation, not to an operational tank regiment. The attraction was straightforward: travel efficiently on roads using wheels, then use tracks where ordinary road movement became difficult. Achieving that combination in a small vehicle, however, imposed its own mechanical compromises. Sources
The program refer to distinct categories into development stages. The accounts distinguish a wooden mock-up, a functional machine-gun vehicle made with mild steel and an improved gun-armed prototype. Its indexed count for the final vehicle does not mean that only one physical object existed throughout the entire program. Nor do these stages automatically justify several completed variant articles. Schofield was not a version of the Bob Semple tank, despite their shared national and emergency context. Keeping that distinction prevents two different attempts at local armored development from being merged into a single story of improvisation. Sources
Local initiative under changing strategic pressure
The project emerged in 1940, when New Zealand's defense preparations were shaped by the war in Europe and uncertainty over British equipment supply. The later expansion of war in the Pacific intensified regional concerns, but it cannot be projected backward as the sole original cause of the design. Shipping, industrial capacity and competing military demands all affected what a small country could obtain and how quickly it could respond. Sources
Schofield's proposal attempted to use locally accessible automotive resources while offering tracked movement as well as road mobility. Early layouts and the changeover mechanism evolved through testing. The machine-gun prototype had a rearward turret arrangement that restricted useful fire in some directions, and development required more than mounting an armored body on existing running gear. The cited accounts do not firmly establish the exact workshop sequence and the designer's geographic associations. It is more accurate to describe a New Zealand development initiative than to resolve conflicting locality claims through repetition. Sources
From machine guns to a turreted antitank weapon
The early functional vehicle provided a way to test the concept but did not possess the characteristics of the final gun-armed prototype. Its machine-gun armament limited the intended fighting role, and its mild-steel construction cannot be equated with tested armor plate of the same thickness. A nominal plate measurement alone does not establish resistance to attack, particularly when material and manufacturing condition differ. Sources

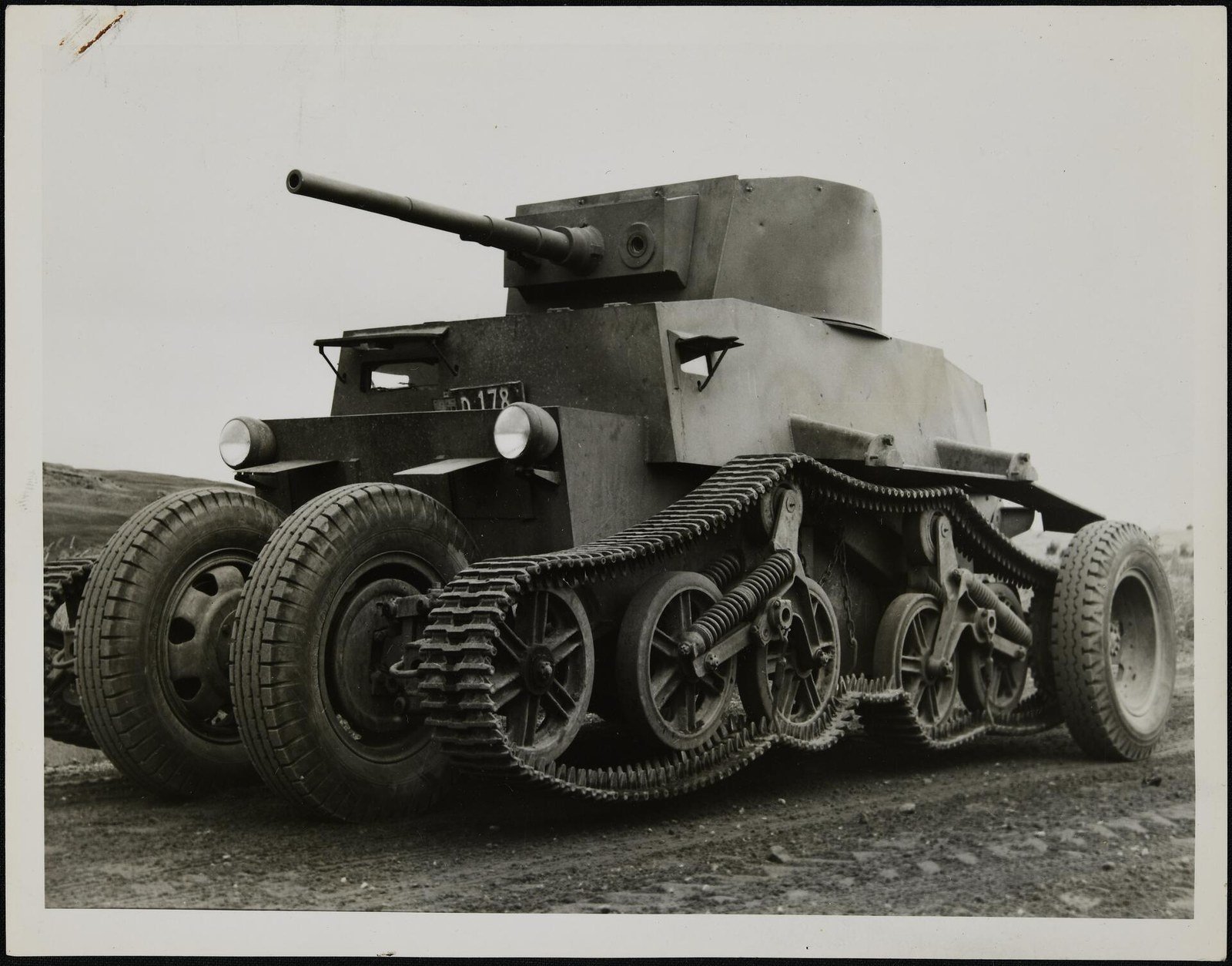

The improved configuration adopted a 2-pounder gun and a Besa machine gun in a more useful turret arrangement. That represented a substantial change in potential firepower, not evidence of service acceptance. The tank remained small and lightly protected, and important details such as ammunition stowage have not been firmly established in the assembled record. Photographs can help distinguish the early machine-gun vehicle from the later configuration, but they cannot supply missing ballistic trials or interior measurements. Sources
Two modes of movement, several unsettled measurements

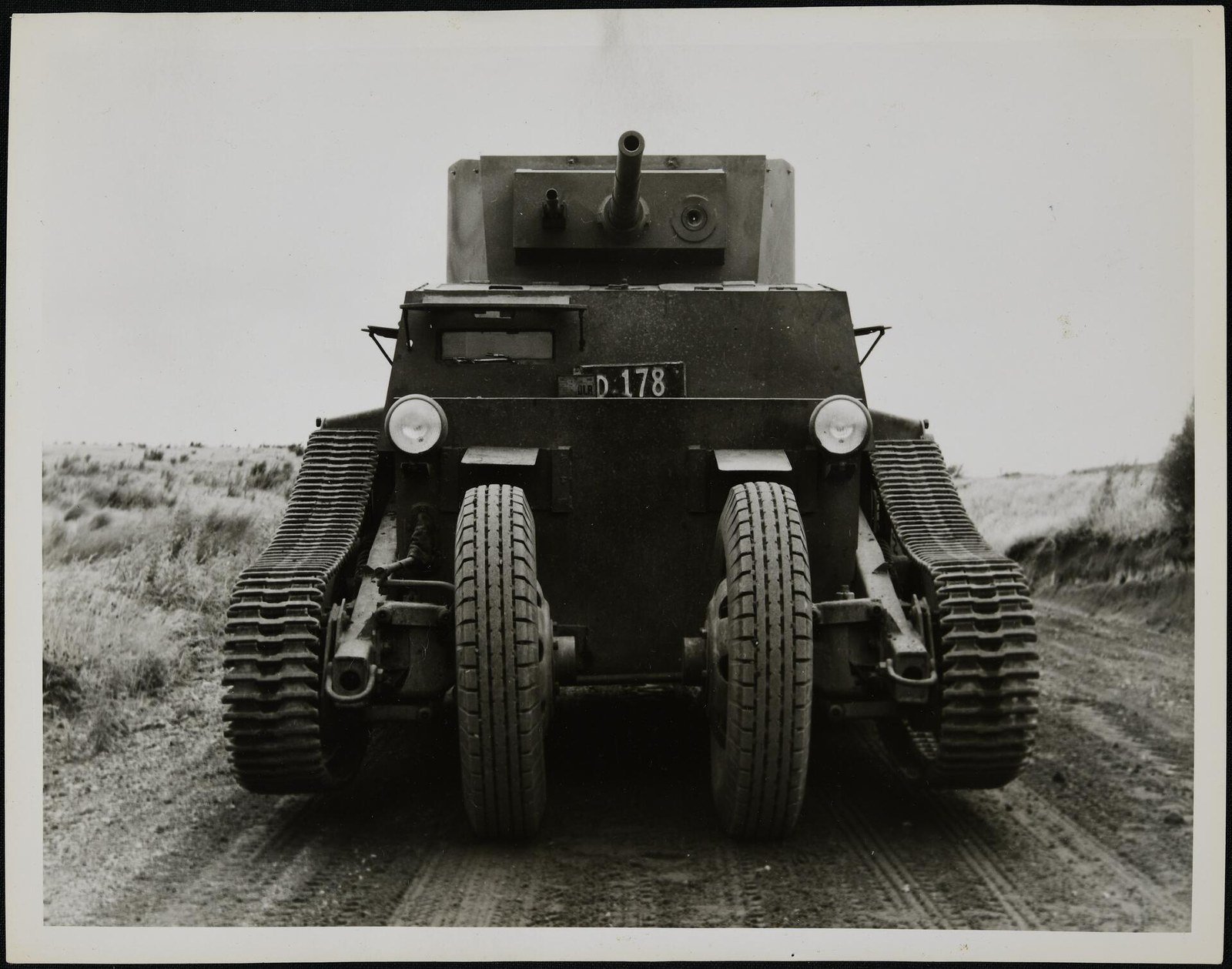

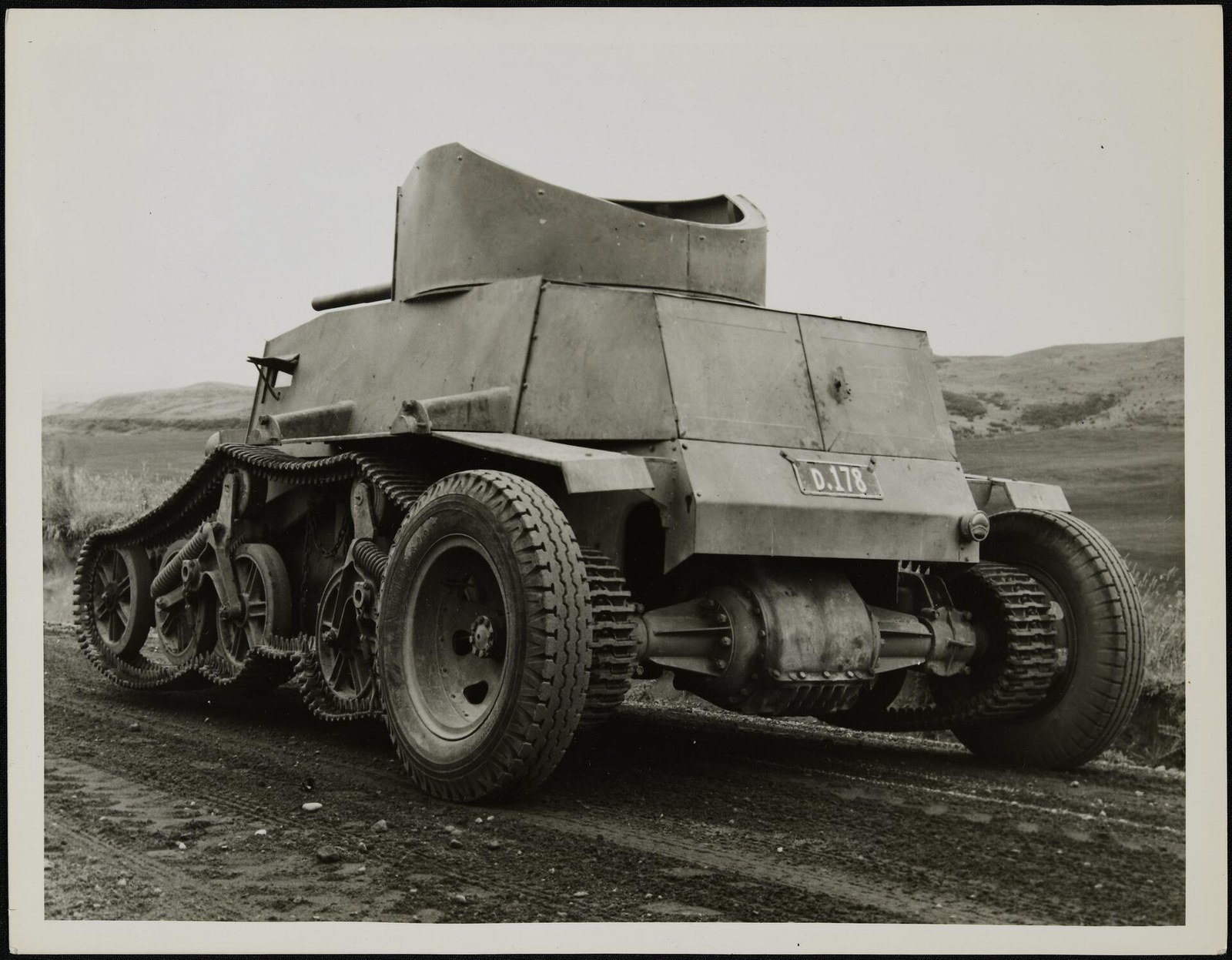

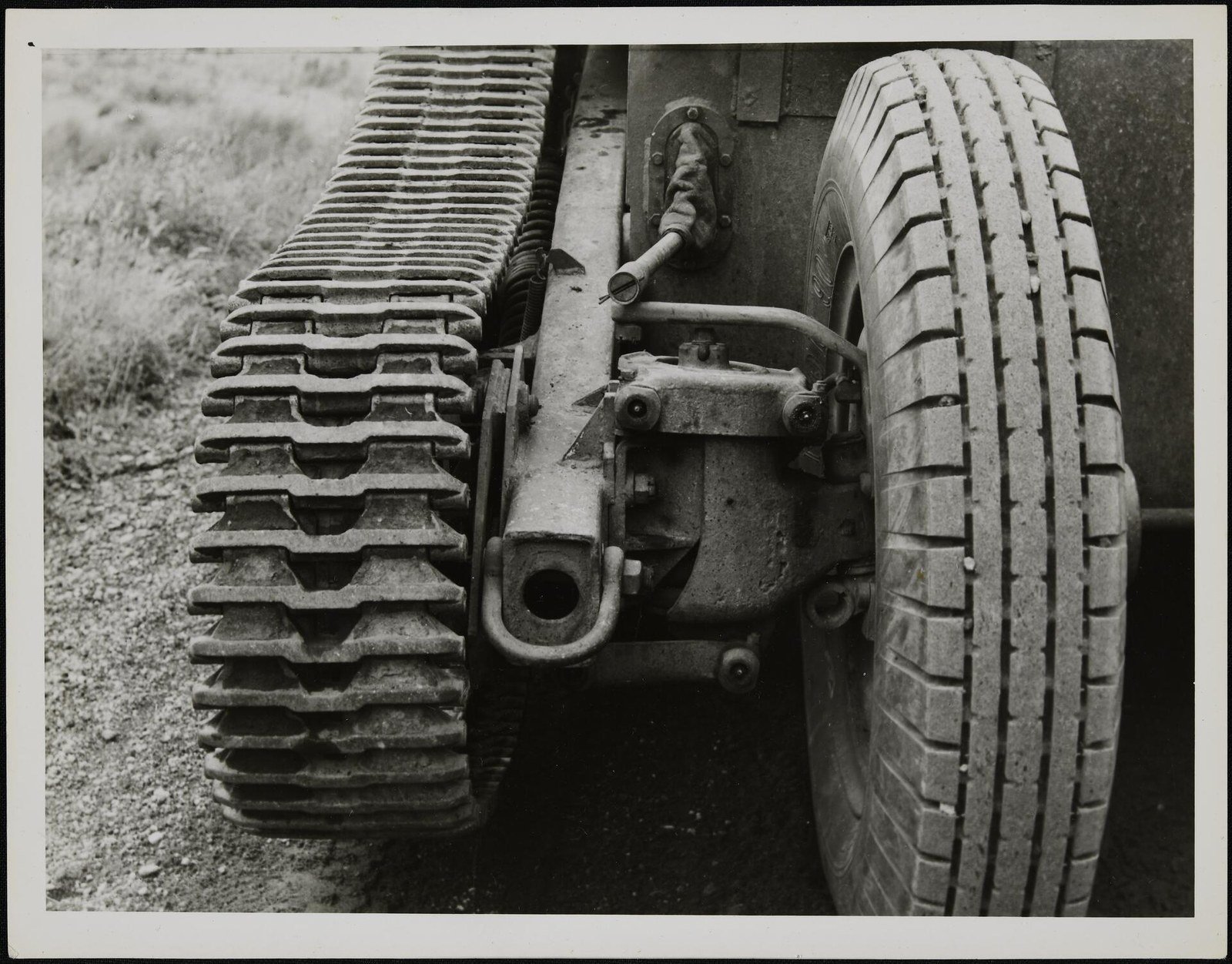

Wheel-and-track operation was the program's defining engineering problem. The intended benefit was rapid road travel without surrendering the ability to move over poor ground. The later vehicle's changeover arrangements differed from those of the earlier prototype, so photographs of one stage cannot reliably explain the other without qualification. Steering, power transmission and the handling of wheels and tracks added mechanical complexity to an already compact machine. Sources
Several published figures need especially careful treatment. Published accounts give a 90 horsepower claim alongside a 29.5 rating whose basis is not securely identified. These cannot be reconciled by assuming they are the same measurement in different units. Its range accounts also include an inconsistent pairing of miles and kilometers. No preferred endurance figure has been created from that conflict. Reported wheel and track speeds likewise belong to particular test conditions and configurations. Technical drawings, trial reports and a documented rating basis are needed before these values can form an approved specification sheet. Sources
Evaluation rather than operational service
New Zealand authorities evaluated the project, and the final prototype was sent to Britain in 1943 for assessment associated with the Department of Tank Design. That journey was a test and procurement event, not an export sale or an overseas combat deployment. The available evidence does not establish acceptance as a standard operational tank, a production order fulfilled in series or any combat service. Sources
The absence of a battlefield record limits what can be concluded. Potential road mobility and tracked cross-country movement can be discussed as intended benefits, while thin protection, early machine-gun armament and mechanical complexity can be treated as design or trial concerns. They cannot be converted into invented combat successes, casualty rates or enemy assessments. The source account places the final vehicle in storage after evaluation and later describes its scrapping, but the complete disposal trail remains to be checked. A photograph of a trial is evidence of a trial, not proof that the machine later entered a unit. Sources
What the experiment reveals
Schofield is significant as evidence of how wartime uncertainty encouraged local attempts to bridge an equipment shortage. Its limited military outcome does not make the engineering effort meaningless, but neither does originality establish direct influence on later Allied tank designs. The project illustrates the gap between building a functioning prototype and sustaining a vehicle through acceptance, manufacture, training and service support. Sources

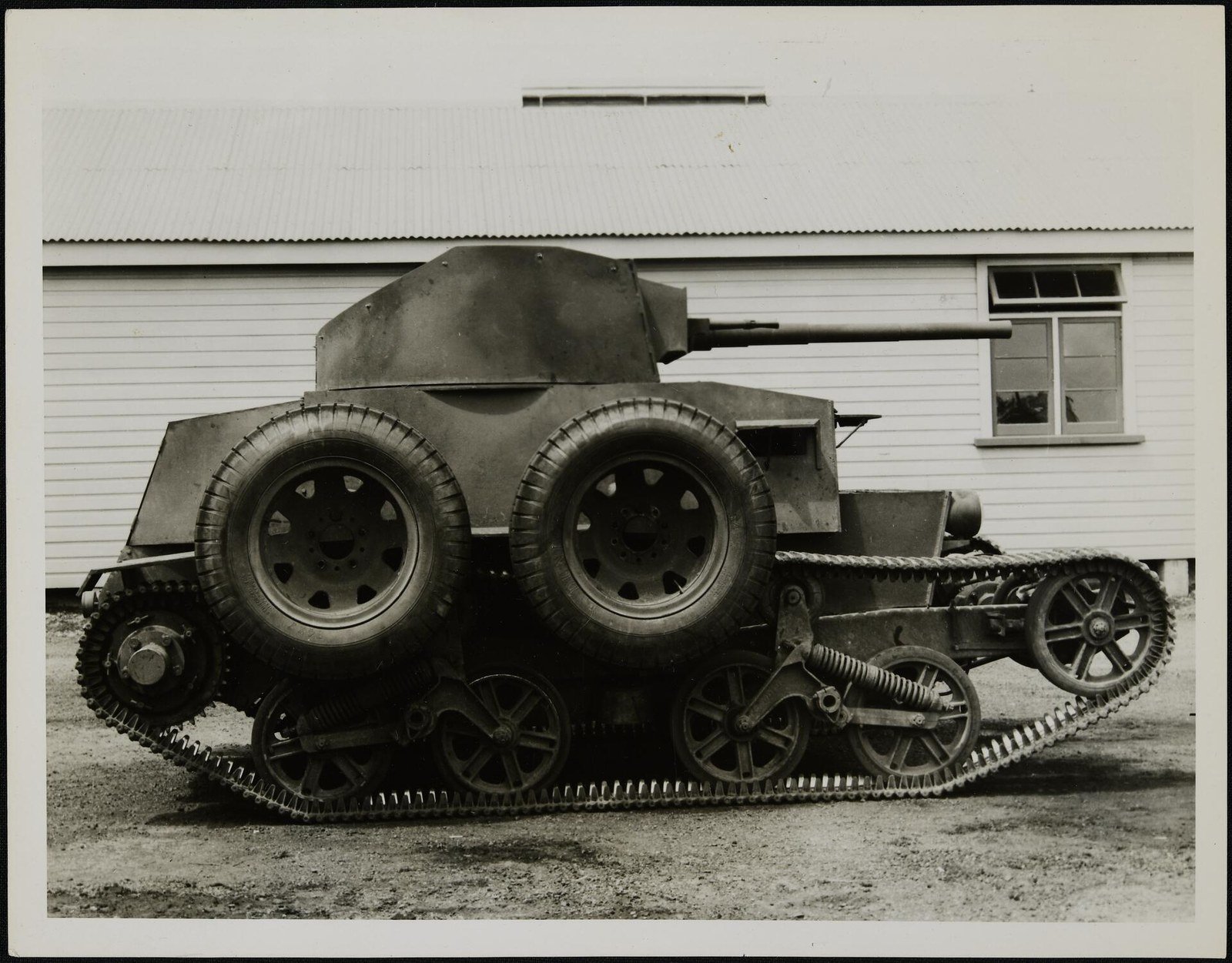

The photographs illustrate Schofield’s wheel and track modes and the differences between its development stages. They provide less certain evidence for exact trial dates, material properties, and measured performance. Sources
