Historical overview
The Merkava Mk 3/4/Barak modern family represents Israel’s distinctive approach to heavy armored warfare after the Cold War. The vehicle family retained the Merkava line’s crew-survivability priorities, front-mounted powerpack, rear crew/utility space, and strong emphasis on indigenous adaptation to Israeli terrain and threat conditions, while moving toward a digital, sensor-heavy, active-protection-centered tank architecture. Sources
The Mk 3 is the bridge case. It entered service at the end of the Cold War and introduced the 120 mm smoothbore gun, improved armor and mobility, and later post-Cold-War fire-control and modular-armor standards such as Baz and Dor Dalet. The Mk 4 then redesigned the modern Merkava around improved protection, a higher-output 1,500 hp-class powerpack, digital systems, and a more mature 120 mm armament suite. Public technical references consistently treat the Mk 4 as a roughly 65-ton, four-crew tank with a 120 mm smoothbore gun, 48-round ammunition load, and 64 km/h road-speed class, but exact armor and many electronics details remain classified or source-dependent (S7). Sources
The most consequential modern shift was active protection. The Mk 4M Windbreaker integrated Rafael’s Trophy / Meil Ruach hard-kill system, moving survivability beyond passive and reactive armor. IDF reporting described Trophy intercepting anti-tank threats during Operation Protective Edge, while the cited accounts and manufacturer materials identify Trophy as a core modern Merkava feature (S3, S4, S-WB). Sources
The Barak generation is best understood as a battlefield-awareness and human-machine-interface modernization rather than a clean new hull family. IDF and defense reporting describe a smart mission computer, artificial-intelligence-assisted workload reduction, updated sensors, virtual/helmet display capabilities, improved sights, 360-degree awareness, and networked intelligence sharing. The first Barak tanks were publicly reported as delivered in 2023 to the 52nd Armored Battalion of the 401st Brigade after roughly five years of development (S1, S2, S6). Sources
The modern Merkava family mattered less because it chased export markets or a universal tank ideal and more because it translated Israeli armored doctrine into a survivability-first, digitally networked, active-protected heavy tank optimized for Israeli operational conditions. Its major uncertainties are exact production totals, exact current inventory, exact Barak quantities, classified armor composition, and classified sensor/electronic-warfare details. Sources
Core citations: S-WB, S1, S2, S3, S4, S6, S7. Sources
The Merkava program grew from Israel’s need to field a domestically supportable armored force after repeated wars, constrained strategic depth, and dependence on foreign supply. By the modern period, the problem had shifted from simply fielding a national tank to adapting armored forces to missiles, urban combat, small-team anti-armor ambushes, improvised explosive devices, drones, networked targeting, and rapid intelligence sharing. Sources
The late Mk 3 and Mk 4 families reflected three interlocking lessons. First, the crew had to survive and keep fighting in close terrain where anti-tank weapons could appear from multiple directions. Second, the tank had to act as part of a networked combined-arms system rather than as an isolated armored gun. Third, the vehicle had to be maintainable and improvable in Israeli service without waiting on foreign production lines. Sources
IDF explanations of the Merkava emphasize that the vehicle was designed around crew protection rather than simply around movement and firepower. The official IDF account describes the front engine as part of the protection concept, the rear space as a useful casualty/infantry-carrying feature, and the battle management system as a major aid to tank crews operating under limited visibility and coordination stress (S3). Sources
The threat environment also changed. Modern Israeli armor faced anti-tank guided missiles, RPGs, close urban attacks, and increasingly aerial top-attack or drone-delivered munitions. That environment made passive armor insufficient by itself and explains why the Merkava modernization story is inseparable from Trophy, sensor fusion, sealed-hatch operation, and the Barak’s aim to improve awareness under armor. Sources
Development and variants
This is a modern tank-family history, not a whole-program Merkava history from 1970. It then covers Mk 3 Baz, Mk 3D Dor Dalet, Mk 4, Mk 4M Windbreaker, and Merkava Barak / Mk 4 Barak. Published accounts describe these records in the modern/post-Cold-War phase and identifies them under F-IL-MERKAVA (S-WB). Sources
Included: modern Merkava tank variants; Trophy-equipped standards; Barak sensor, fire-control, and human-machine-interface modernization; modern Israeli operator service; and non-tank derivatives as boundary notes. Excluded from depth: the early Mk 1 and Mk 2 development program, full 1982 Lebanon War analysis, and detailed Namer/Ofek APC technical history except where these vehicles illuminate chassis lineage or boundary handling. Sources
Namer, Namer IFV, Ofek, and Nemmera use Merkava-derived engineering for heavy armored transport, command, or recovery roles. They are not additional Merkava gun-tank variants. Sources
The Mk 3 emerged from the late Cold War Merkava line and introduced a 120 mm smoothbore gun and improved automotive/protection standards. Published accounts describe Mk 3 production as a boundary case beginning in 1989, with Mk 3B and later standards shifting into the post-1991 modernization era. Sources
The Mk 4 represents a larger redesign. Public technical references describe Mk 4 development in the 1999-2004 period, with production transitioning from Mk 4 to Mk 4M after Trophy integration. The IDF’s official retrospective states that the Merkava Mk IV came into use in 2004 and included a fire-control system, battle-management system, and terrain mobility improvements (S3, S7). Sources

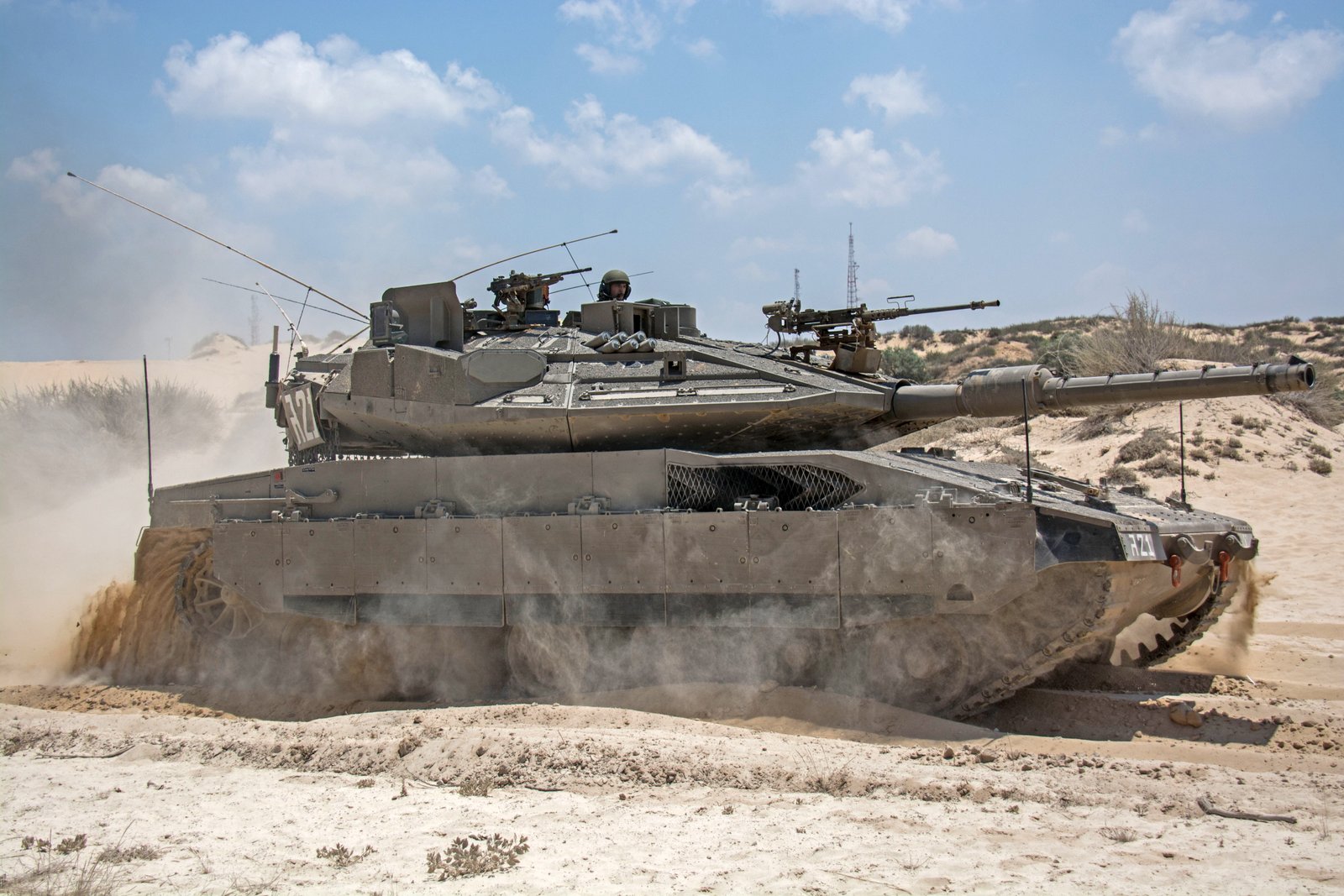

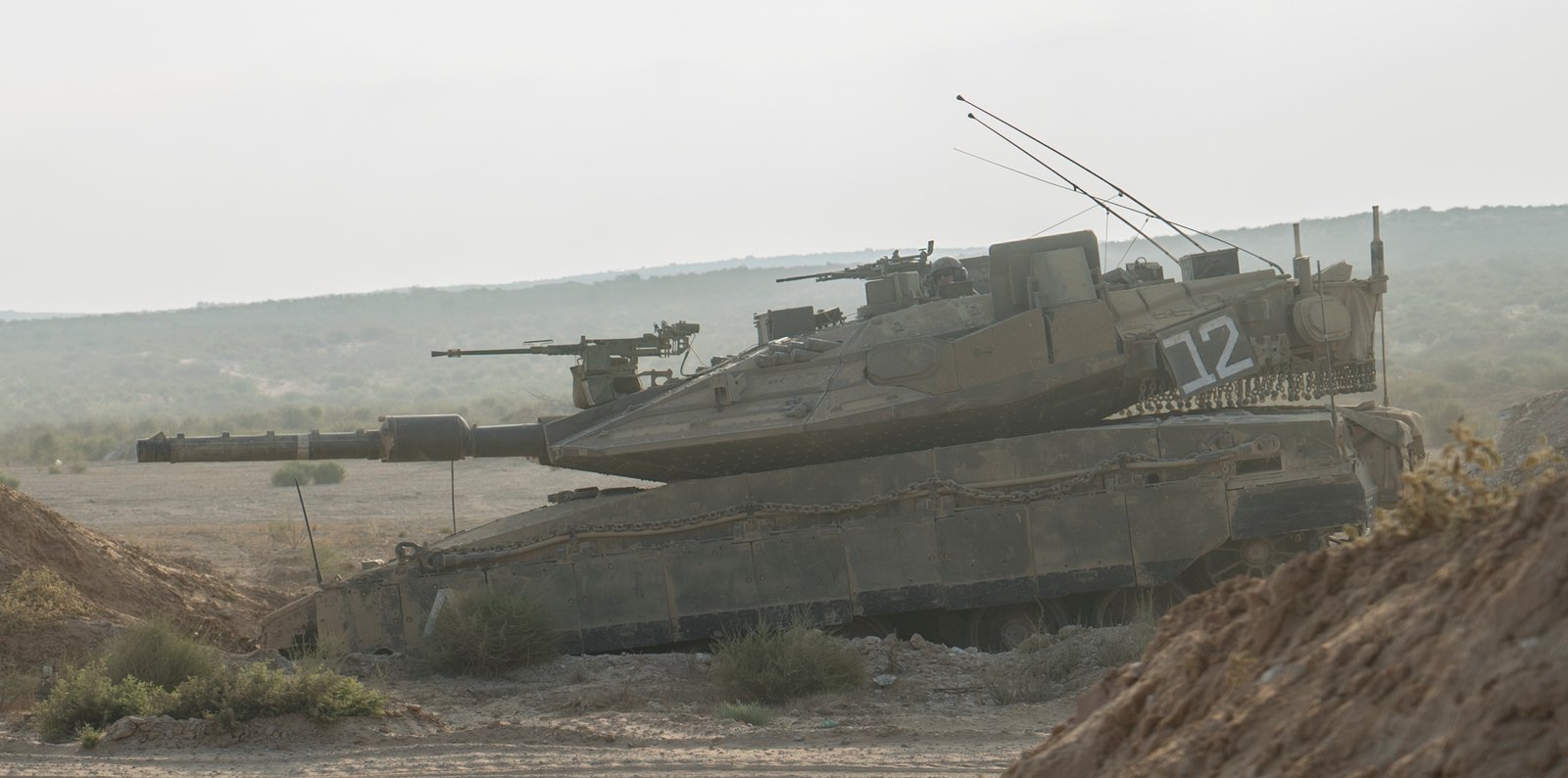

The Mk 4M Windbreaker added the Trophy active protection system to the Merkava Mk 4. The upgrade was not just a bolt-on survivability kit; it changed tactical behavior by giving crews a chance to defeat incoming anti-tank weapons before impact. The IDF’s 2014 article describes Trophy intercepting an anti-tank missile during Operation Protective Edge, and Rafael’s official Trophy page identifies the system as an operational active-protection solution for armored platforms (S3, S4). Sources

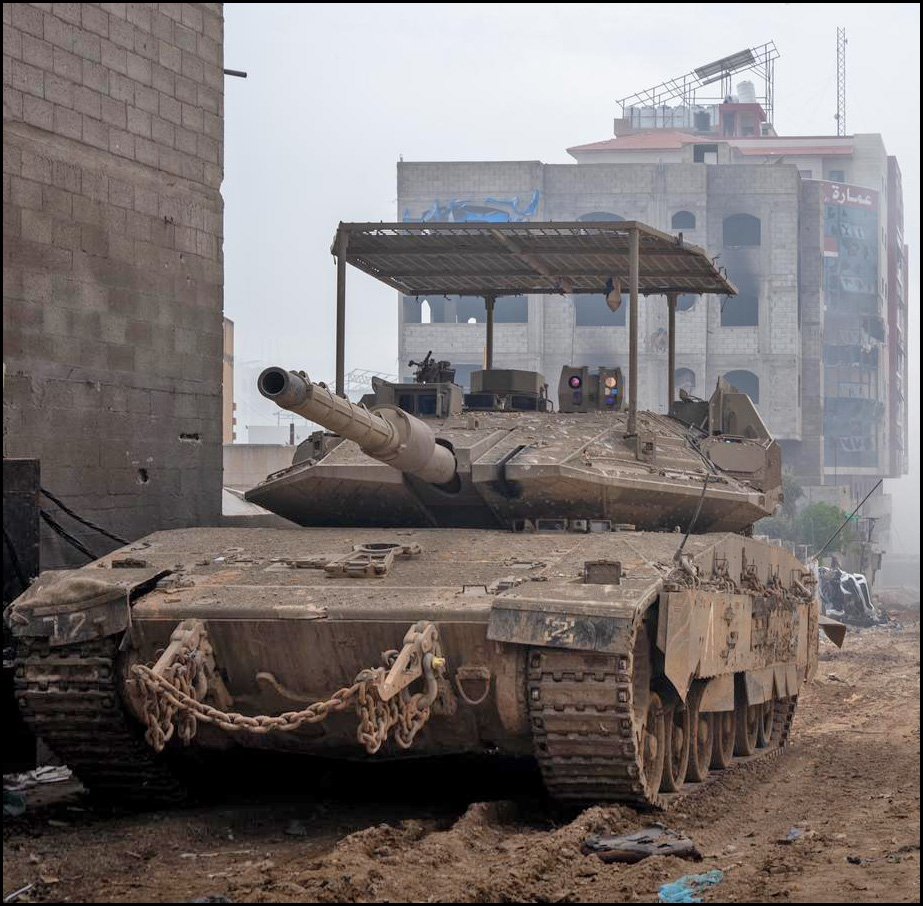

Barak development was publicly framed in 2018 and fielded publicly in 2023. The IDF described the Mk 4 Barak as a tank with a smart mission computer, AI-enabled workload reduction, updated sensors, and VR/helmet-view capabilities (S1). The Times of Israel reported that the first “5th generation Merkava battle tanks” were delivered to the 52nd Armored Battalion of the 401st Brigade after five years of development by the Defense Ministry’s Armored Vehicles Directorate, IDF Ground Forces, the Armored Corps, and Israeli defense firms including Elbit, Rafael, and IAI/Elta (S2). Sources
EDR’s reporting adds a useful technical interpretation: externally, Barak remains close to the Mk 4, with chassis, engine, automotive elements, and most armor largely unchanged, while the real modernization lies in sensors, electronics, software, sighting, HMI, TORCH battle-management integration, and AI-enabled target handling. That supports classifying Barak as a modernized Mk 4 family standard rather than as a wholly new clean-sheet tank (S6). Sources
Design and performance
The modern Merkava retains the line’s unusual front-engine layout, rearward turret placement, and rear access/utility space. The layout is tied to Israel’s crew-survivability philosophy and to the ability to evacuate casualties or carry small numbers of personnel in exceptional circumstances. This feature cannot be overstated into a normal infantry-transport role; the tank remains an MBT, while Namer and Ofek perform the dedicated heavy APC role. Sources
The hull emphasizes frontal protection, modular repairability, and compartmentalized survivability. Public sources do not provide authoritative armor composition, and all armor-thickness claims remain uncertain. Later Mk 3D and Mk 4 standards added modular armor logic, while Mk 4 reshaped hull and turret protection for a modern threat environment. Sources
The Mk 3 introduced the 120 mm armament into the family, while the Mk 4 used a redesigned turret with improved protection and sensor/weapon integration. Mk 4M visible features include Trophy radar and countermeasure components around the turret, and Barak adds sensor/electronics layers that are not always externally obvious. Sources
The armor scheme is classified in detail. Public descriptions consistently emphasize modular composite armor, enhanced side/top protection, and rapid replacement of damaged modules. The Mk 4M and Barak combine passive armor with hard-kill active protection, making the protection concept layered rather than simply thicker. Sources
Modern Merkava variants use a 120 mm smoothbore gun. Public technical references identify the Mk 4 gun as the Israeli MG253 class, with the ability to fire NATO-standard and Israeli 120 mm ammunition. Exact ammunition lots, penetrator details, and current classified rounds cannot be inferred from public imagery. Sources
The family commonly carries 7.62 mm machine guns, an internally mounted 60 mm mortar, smoke launchers, and in some configurations a 12.7 mm heavy machine gun mounted externally/coaxially over the main gun. Exact fit varies by variant, unit, period, and operational need. Sources
Public sources cite 48 rounds for Mk 4-class tanks and a ready-use electric drum/revolver system for a subset of rounds. The rear ammunition/crew compartment is part of Merkava design logic, but detailed ammunition handling and survivability provisions remain uncertain. Sources
Fire-control systems evolved from late Mk 3 Baz improvements to the Mk 4 digital suite and then to Barak’s improved FCS. The 2023 Barak Published accounts describe accurate day/night fire while stationary or moving, upgraded sights, and improved ranges, but do not provide enough public data for a quantitative performance comparison (S2, S6). Sources
Mk 3 Baz is associated in the available accounts with improved fire-control and electronics; Mk 4 added a modern digital sighting environment. Barak adds improved commander and gunner sights, advanced night vision, sensor fusion, and a helmet display associated with Elbit IronVision, allowing sealed-hatch operation and wider situational awareness (S2, S5, S6). Sources
Public sources identify Mk 4 as using a 1,500 hp-class MTU/GD diesel powerpack with Renk transmission, giving it a modern power-to-weight ratio. Earlier Mk 3 variants used a lower-output AVDS-1790 diesel family. Exact configuration can vary across sources, and fielded vehicles may reflect upgrades or local maintenance changes. Sources
The Merkava uses a robust tracked suspension designed for Israeli terrain, including rocky ground and close maneuver. Public Mk 4 figures put speed in the 60-64 km/h road class and range around 500 km, but operational mobility depends heavily on terrain, load, and protection configuration (S7). Sources
The crew remains four: commander, gunner, loader, and driver. Barak’s most important ergonomic change is not crew count but the effort to reduce cognitive burden through AI-supported mission computers, sensor fusion, sealed-hatch visibility, and more intuitive touchscreen/interface design for young conscripts (S1, S2, S6). Sources
Modern Merkava standards integrate with Israeli battle-management and command networks. IDF reporting highlighted the battle-management system as a “fifth crew member” that displays friendly locations and helps navigation; Barak adds richer information sharing with other tanks and units (S3, S2). Sources
Trophy / Windbreaker is the defining modern protection system. It detects incoming anti-tank threats, computes trajectories, and launches countermeasures to defeat incoming weapons before impact. Barak adds improved data use around Trophy and other sensors, but exact electronic warfare and counter-drone provisions remain sensitive (S3, S4, S6). Sources
The Merkava design places considerable emphasis on battlefield repair and domestic support. Modular armor and an Israeli-centered industrial base allow continued upgrades. Public descriptions identify the architecture and named systems more clearly than they establish fleet-wide readiness or availability. Sources
No tank is invulnerable to mines, top-attack, close assault, drones, multiple coordinated shots, or operational surprise. The modern Merkava’s weight and size can also constrain mobility and transport. Claims of Trophy invulnerability, drone immunity, or simple one-shot vulnerability are all overstatements without context. Sources
Production, operators, and combat record
The modern Merkava is a national armored-vehicle project centered on Israel’s Ministry of Defense armored-vehicle organization and the IDF industrial/maintenance system rather than a standard export product. The cited accounts and public reporting identify the modern line as domestically produced and upgraded for Israeli service. Exact factory allocation, production cadence, and batch counts for current standards are not fully public. Sources
The Barak generation illustrates the industrial ecosystem. The Times of Israel reported a joint development effort involving the Defense Ministry’s Armored Vehicles Directorate, the IDF Ground Forces and Armored Corps, and Israeli defense firms including Elbit Systems, Rafael, and IAI/Elta (S2). EDR similarly attributed the development to the Tank and APC Directorate, Land Forces HQ, Armored Corps, and 401st Brigade with those industrial partners (S6). Sources
Rafael’s role centers on Trophy/Windbreaker active protection and related sensor/countermeasure architecture. Elbit’s role includes sighting, night vision, fire-control, interface, and IronVision-style helmet/situational-awareness systems. IAI/Elta is associated in reporting with sensor and radar elements. The exact division of current Barak subsystem work is described as public-source-level and not exhaustive. Sources
Export production is not a major factor for the tank family. Derivative vehicles such as Merkava-based AVLBs and APCs may have separate export histories, but they are outside the tank-family core. Sources
The confirmed operator for the modern Merkava tank family is Israel. Public reporting indicates Mk 3 retained/legacy service, Mk 4 as the main modern tank, Mk 4M as the Trophy-equipped standard, and Barak as a fielding standard beginning in 2023. Exact active/reserve numbers are not public and cannot be inferred from open-source fragments. Sources
The Mk 3 and Mk 4 family saw Israeli service in the Second Intifada era, the 2006 Lebanon War, Gaza conflicts, Operation Protective Edge, and the Gaza war era. Sources
The central documented combat theme is the interaction between heavy armor and anti-tank weapons in dense or irregular environments. IDF public writing emphasizes that Trophy intercepted an anti-tank missile during Operation Protective Edge, and other open sources widely discuss Trophy interceptions in Gaza and other operations. The safe historical conclusion is that Trophy became a combat-relevant part of the Merkava system, not that it made tanks invulnerable (S3, S4). Sources
The Mk 4’s rear space, crew-centered design, and battle-management system also shaped its battlefield role. The IDF described the battle-management system as helping crews locate friendly forces and navigate without constantly looking outside, which matters in close terrain and combined-arms environments. This reinforces the view that modern Merkava combat value lies as much in protected awareness and coordination as in gun/armor metrics (S3). Sources
Barak’s combat history is still early. Reports after its 2023 fielding claim operational use, but the public evidence base is not yet mature enough to isolate Barak performance from broader IDF armor operations. Barak’s combat record is described as emerging and time-bound, with an unresolved question for later official after-action material. Sources
The cited material documents broad service contexts more clearly than the effects of individual systems or exact combat losses. Reported damage and loss figures do not consistently distinguish variants, repairable vehicles, and permanent losses. Sources
Legacy and historical evidence
The relevant contemporaries for the modern Merkava family are the M1 Abrams, Leopard 2A5/A6/A7, Challenger 2/3 transition, Leclerc, T-90/T-90M, and late T-72/T-80/T-84 modernizations. The comparison below is qualitative because exact armor, sensor, and ammunition details are not publicly comparable across countries. Sources
The modern Merkava family’s major design legacy is the operational normalization of active protection and protected awareness. The Mk 4M helped show that hard-kill APS was no longer just a laboratory solution. Barak then moved the line toward human-machine teaming, AI-assisted target handling, and helmet/see-through-armor concepts. Sources
Doctrinally, the family reinforces a model in which tanks remain relevant when integrated with infantry, engineers, air/ISR assets, and networked command systems. Defense Minister comments quoted in 2023 reporting framed Barak as evidence of the continuing relevance of tanks as decisive maneuver systems, but the better historical reading is conditional: tanks remain relevant when protected, networked, supported, and adapted (S2). Sources
Industrial legacy is also important. The Merkava/Namer/Ofek ecosystem shows how a national tank project can create a family of heavy armored vehicles beyond the gun tank. Those derivatives were part of Israeli armored-force modernization but performed different roles from main battle tank variants. Sources
Common misconceptions include: treating Barak as a completely new clean-sheet tank; treating Trophy as invulnerability; assuming all Mk 3 vehicles have identical modernization standards; assuming every Merkava-derived heavy vehicle is a tank; and using speculative internet production numbers as verified inventory. Sources
