MBT-70 / KPz-70

American MBT-70 prototype, front view. U.S. MBT-70 prototype. Date/. not stated on the Commons file page.U.S. Army; public domain, U.S. federal government work / PD-USGov.Image source

Historical overview

The MBT-70 / KPz-70 was a built, tested, full-scale prototype main battle tank family rather than an operational tank. It began as an August 1963 U.S.-West German agreement to produce a single common tank for the 1970s. American sources usually use MBT-70; German sources use KPz-70 or Kampfpanzer 70. Sources

The design mattered because it condensed many 1960s ideas about the future of tank warfare into one vehicle. It was meant for high-intensity combat in Central Europe, with a low silhouette, advanced sighting and stabilization, missile-armed long-range firepower, a powerful diesel powerpack, and a suspension that could raise, lower, or kneel the vehicle. The crew sat entirely in the turret, while the driver occupied a counter-rotating station intended to keep him facing forward as the turret traversed. [Cameron 1998; AUSA/Pocock 2020; Tank-AFV] Sources

Its main armament, the 152 mm XM150 gun/launcher, grew from the same Shillelagh missile logic used on the M551 Sheridan and M60A2. The weapon promised both large-caliber conventional rounds and guided anti-tank missiles, but it also brought combustible-case ammunition, missile reliability, autoloader integration, fire-control, and handling problems into a tank that was already mechanically complex. The GAO and later U.S. Army historical reviews used Shillelagh-related programs as examples of the danger of committing unproven weapon concepts to several armored systems before the initial application was fully mature. [GAO B-163058; Cameron 1998] Sources

The program failed as a procurement project. RAND summarized the central problem as an inability to reconcile different American and German concepts of tanks and tank warfare, producing a complex and expensive vehicle while each nation increasingly duplicated development effort. Germany abandoned the joint project in 1969; the United States continued through a simplified XM803 approach before Congress ended funding. [RAND 1981; Cameron 1998; GAO PSAD-78-1] Sources

The outcome is paradoxical: the MBT-70 / KPz-70 was too ambitious to field, but too influential to dismiss. It helped both partners learn what not to carry into a production tank. German development moved toward the Leopard 2 line; U.S. development moved through XM803 and the XM1 program toward the M1 Abrams. Some technological aspirations survived, but the successors were successful partly because they applied stricter discipline to technology maturity, cost, maintainability, and crew ergonomics. [Cameron 1998; AUSA/Pocock 2020; Army Science Board 2019] Sources

The MBT-70/KPz-70 emerged from a particular NATO moment. In the early 1960s, the United States relied on M48 and M60-series tanks, while West Germany was still operating large numbers of U.S.-supplied Pattons even as it developed Leopard 1. NATO planners expected any general war in Europe to include massed Warsaw Pact armor, artillery, air attack, and possible nuclear, biological, or chemical effects. Tank design therefore had to balance firepower, cross-country mobility, protection, NBC survivability, and logistics across alliance armies. [Cameron 1998; RAND 1981] Sources

The Soviet threat was a major stimulus. AUSA/Pocock emphasizes U.S. concern about the T-62 with its 115 mm smoothbore gun and intelligence reports on the emerging T-64 with an autoloader and stabilization. Whether every detail of those reports was correct at the time is less important than the perception: NATO tankers believed they needed a generational leap, not merely another incremental Patton or Leopard improvement. [AUSA/Pocock 2020] Sources

The political context also mattered. U.S. Secretary of Defense Robert McNamara strongly favored multinational standardization and joint development. In theory, a common U.S.-German tank would reduce duplicated research and development, simplify NATO logistics, and improve interoperability. In practice, it forced two armies with different strategic cultures and industrial constituencies to agree on one vehicle. RAND later identified this inability to reconcile different concepts of tanks and tank warfare as the core reason the program became complex, expensive, and duplicative. [RAND 1981; AUSA/Pocock 2020] Sources

The doctrinal differences were real. German preferences emphasized a speedy vehicle optimized for European conditions, short-to-medium engagement distances, armor protection without unacceptable mobility loss, and strong nuclear-radiation protection. American planners favored a somewhat heavier globally deployable vehicle, thicker armor, a long-range missile capability, and less emphasis on nuclear protection than the Bundeswehr wanted. These priorities did not make either partner unreasonable; they made the common design increasingly difficult. [AUSA/Pocock 2020] Sources

Development and variants

Published accounts describe MBT-70 / KPz-70 as the full joint U.S.-West German prototype program. It includes the U.S. MBT-70 pilot vehicles, the German KPz-70 branch, program-level subsystem design, the U.S. XM803 follow-on as a direct descendant, and paper support vehicles where Published accounts describe them. It does not treat the production M1 Abrams or Leopard 2 as variants of MBT-70; they are separate families influenced by the program. Sources

Classification: prototype main battle tank. It was not a light tank, tank destroyer, or assault gun, although its 152 mm gun/launcher and Shillelagh missile capability can cause boundary confusion with missile-tank and gun/launcher categories. The cited accounts key terms classify gun/launcher, missile tank, and prototype as classification-sensitive terms, which is appropriate here. Sources

The full MBT-70/KPz-70 program narrative from joint agreement through cancellation. Sources

U.S. and West German requirement differences, industrial structure, and program-management issues. Sources

Core technical architecture: crew-in-turret layout, driver capsule, XM150 gun/launcher, Shillelagh missile, autoloader, 20 mm secondary cannon, hydropneumatic suspension, powerpacks, NBC protection, and early digital fire control. Sources

Prototype and pilot accounting as far as open sources and the cited accounts allow. Sources

The U.S. XM803 follow-on and German Leopard 2K/Leopard 2AV relationship as legacy and boundary context. Sources

A full production history of Leopard 2, M1 Abrams, M60A2, or M551 Sheridan. Sources

Precise classified armor composition or exact protection equivalency claims where open sources conflict or give unsourced numbers. Sources

A combat record, because the MBT-70/KPz-70 never entered operational service or combat. Sources

Related vehicles often confused with this family include XM803, M60A2, M551 Sheridan, Leopard 2K, Leopard 2AV, VT1-1, VT1-2, Keiler, Eber, and the production Leopard 2 and M1 Abrams. The strongest relationship is not a simple variant chain but an engineering and procurement lineage. [Cameron 1998; GAO PSAD-78-1] Sources

MBT-70 and KPz-70 were the American and West German branches of a joint program. The XM803 was a subsequent American simplification effort; proposed recovery vehicles were not additional production tanks. Sources

The United States and West Germany agreed in August 1963 to develop a joint main battle tank known as MBT-70. In German use, the vehicle became KPz-70 or Kampfpanzer 70. The program was intended to correct perceived M60/M60A1 weaknesses and create a common tank for the high-intensity Central European battlefield. [Cameron 1998] Sources

At the beginning, the project appealed to both sides. The United States saw a path to modernize beyond the M60 while sharing development burden and improving NATO standardization. West Germany saw access to a high-performance next-generation program and a means of replacing Patton-era vehicles. The design target quickly became more than a conventional tank: it was a systems-integration project involving missile fire, autoloading, hydropneumatic suspension, advanced electronics, and unconventional crew placement. [RAND 1981; Cameron 1998] Sources

On the American side, Maj. Gen. Welborn Dolvin was the first U.S. project manager, and General Motors was selected over Chrysler and a Ford/FMC team for development work. AUSA/Pocock presents this as an important industrial decision because Chrysler had been the dominant U.S. tank producer since World War II, whereas General Motors appeared better positioned to bring unconventional automotive and systems ideas into the program. [AUSA/Pocock 2020] Sources

German industry participated through its own development structure and component suppliers. German priorities were especially visible in the interest in high-output diesel power, the 20 mm Rheinmetall secondary cannon, and later pursuit of a 120 mm kinetic-energy gun after dissatisfaction with the U.S. missile-gun concept. The division of subsystem responsibility among firms varies between sources and prototype configurations. [AUSA/Pocock 2020; Tank-AFV] Sources

The prototype phase exposed how tightly the vehicle architecture depended on several new or immature systems. The 152 mm gun/launcher, combustible-case ammunition, Shillelagh missile guidance, autoloader, driver capsule, fire-control computer, laser rangefinder, stabilization system, and hydropneumatic suspension each required successful integration. A problem in one area could cascade into crew layout, turret volume, reliability, safety, or cost. [Cameron 1998; GAO B-163058] Sources

Open-source prototype counts are not uniform. Published accounts describe approximately fourteen pilot/prototype hulls for the combined program. Tank-AFV gives fourteen total production/prototypes and discusses mild-steel prototypes, pilots, and national sets, but the exact counting definition can vary: complete prototypes, pilot vehicles, test hulls, and branch-specific vehicles are often mixed. Published accounts describe "prototype-only; approximately fourteen combined program vehicles/hulls" unless a source is explicitly using a different definition. [Tank-AFV] Sources

The original compromise gave the vehicle the U.S.-designed Shillelagh gun-missile system, capable of firing both a 152 mm projectile and a guided missile. This choice aligned with American long-range anti-armor thinking, but it created a deep design dependence on combustible-case ammunition, missile reliability, infrared guidance, and autoloader function. [AUSA/Pocock 2020; GAO B-163058] Sources

By the late 1960s, the Shillelagh concept was increasingly criticized. Pocock states that the system was regarded as unreliable and that caseless ammunition often left residue that caught fire. The Germans were intent on a 120 mm gun, while Americans considered an enhanced 105 mm kinetic-energy cannon. This divergence illustrates the central program problem: even after agreement on a shared tank, the partners continued to prefer different solutions to the same battlefield problem. [AUSA/Pocock 2020] Sources

Cost growth made the technical problems politically decisive. AUSA/Pocock reports that McNamara and West German Defense Minister Kai-Uwe von Hassel initially discussed an $80 million goal with allowance for overruns to $100 million, but this estimate did not survive contact with the evolving design. By late 1968, projected unit production cost was around $500,000 depending on what was included, enough to discourage potential Dutch interest. [AUSA/Pocock 2020] Sources

RAND later concluded that the program had produced an increasingly complex and expensive tank while both nations duplicated work. In 1969, West Germany abandoned the effort and pursued its own tank. U.S. sources place the formal end of the joint program in January 1970. The United States continued with a simplified redesign known as XM803, but Congress also rejected that route. GAO summarizes the sequence: MBT-70 first, XM803 afterward, and then the XM-1 program beginning in 1972; meanwhile Germany completed Leopard 2 development in 1974. [RAND 1981; AUSA/Pocock 2020; GAO PSAD-78-1] Sources

The program therefore ended in two different ways. Germany turned toward a more conventional Leopard 2 path. The United States turned toward XM803 and then XM1/M1 Abrams. The failed joint tank became the negative example against which both successor programs defined better cost discipline and technology maturity. [Cameron 1998; Army Science Board 2019] Sources

Design and performance

The MBT-70/KPz-70 had a low hull, rear powerpack, large turret, and all three crew members in the turret. The crew concept was central to the design. By placing commander, gunner, and driver in the turret, the designers sought to shorten the hull, reduce the protected volume, simplify NBC-protected crew accommodations, and lower overall silhouette. [Cameron 1998; Tank-AFV] Sources

The driver sat in a counter-rotating station intended to keep him facing the direction of travel as the turret traversed. The idea was elegant on paper but difficult in practice. U.S. Army historical review notes that permitting the driver to continue seeing forward while the turret rotated became a major engineering challenge; secondary sources also report disorientation in testing. [Cameron 1998; Tank-AFV] Sources

The hull was designed around low profile, high mobility, and an adjustable hydropneumatic suspension. The rear powerpack arrangement was conventional, but the crew concentration in the turret made the hull more of a chassis, suspension, power, and ammunition-support platform than on earlier four-man tanks. [Tank-AFV; Hunnicutt 1990] Sources

The front hull and turret face used spaced protection concepts in open-source descriptions, but exact armor thickness, metallurgy, and protection equivalence are not treated as well-documented because public sources do not agree and many claims appear to be derivative. The safe statement is that protection was intended to improve over earlier Patton/Leopard-era vehicles while keeping the silhouette low and maintaining high mobility. [Cameron 1998; Tank-AFV] Sources

The turret was the heart of the vehicle. It housed the main gun/launcher, autoloader, commander, gunner, driver station, fire-control equipment, NBC-protected crew space, coaxial machine gun, and retractable 20 mm cannon. This concentration reduced hull crew volume but increased turret complexity and maintenance burden. [Cameron 1998; AUSA/Pocock 2020] Sources

The turret concept was one of the program's strongest narrative hooks. A photograph or cutaway makes immediately clear why the tank was so futuristic: three crew stations inside the turret, the driver near the center of rotation, and ammunition and gun systems arranged around a much larger weapon package than a conventional 105 mm tank. The same concentration of functions also explains why reliability and ergonomics were hard to solve. [Cameron 1998; Tank-AFV] Sources

Open sources describe spaced armor and planned NBC/radiation protection. Cameron states that the air-conditioned turret compartment simplified protection against NBC weapons, while AUSA/Pocock notes radiation protection requirements for the three-man crew. German requirements put comparatively high emphasis on nuclear-radiation protection because the tank was expected to fight in Central Europe under potential nuclear conditions. [Cameron 1998; AUSA/Pocock 2020] Sources

Smoke grenade launchers, compartmentalized fire protection, and low silhouette were part of the survival concept. The cited accounts do not firmly establish exact armor thickness claims. In a book manuscript, this vehicle is described as protected by a spaced-armor concept rather than assigned precise rolled-homogeneous-equivalent values. [Tank-AFV; Hunnicutt 1990] Sources

The main weapon was the 152 mm XM150 gun/launcher in the U.S. branch, with open sources often citing XM150E5 for MBT-70 and XM150E6 for XM803. It was intended to fire conventional 152 mm ammunition and the MGM-51 Shillelagh guided missile. The weapon embodied the 1960s belief that guided missiles could give tanks long-range anti-armor lethality beyond conventional gun engagement limits. [AUSA/Pocock 2020; Tank-AFV] Sources

The gun/launcher was also the vehicle's most consequential risk. It required reliable missile guidance, safe combustible-case ammunition, and an autoloader matched to the large ammunition format. The M551 Sheridan and M60A2 experience demonstrated how difficult the Shillelagh family could be in troop use, and the MBT-70 inherited those doubts before it was fielded. [GAO B-163058; Cameron 1998] Sources

Secondary armament included a coaxial 7.62 mm machine gun and a 20 mm Rheinmetall Rh 202 automatic cannon on a retractable mount above the turret. U.S. sources list the M73 coaxial machine gun, while German sources typically list the MG3. The 20 mm gun was intended for lightly armored targets, troops, and low-flying threats, but it added another mechanical subsystem to a crowded turret. [Cameron 1998; Tank-AFV] Sources

Ammunition capacity figures vary by source and vehicle. For MBT-70, secondary sources often report roughly 48 rounds/missiles for the 152 mm system, while XM803 is often reported with 50 rounds after autoloader simplification. The 20 mm cannon had several hundred rounds, and the coaxial machine gun used standard 7.62 mm ammunition. These values is described as less certain unless tied to a specific prototype. [Tank-AFV; Hunnicutt 1990] Sources

Combustible-case ammunition was a key risk. It eliminated metal cartridge case ejection, which was attractive for a compact autoloaded turret, but it also created residue and fire concerns. Pocock specifically remembers that caseless ammunition residue could catch fire, reinforcing the broader GAO lesson about committing unproven ammunition and weapon subsystems across multiple vehicle programs. [AUSA/Pocock 2020; GAO B-163058] Sources

The MBT-70 was a major step toward the electronics-dense tanks of the 1980s. Cameron identifies a digital computer, laser rangefinder, and sophisticated gun stabilization system for firing on the move. Pocock's recollection of a stabilized MBT-70 prototype at speed underscores why some participants still saw the program as technically impressive even as procurement certainty collapsed. [Cameron 1998; AUSA/Pocock 2020] Sources

The Shillelagh missile used infrared guidance as described by Pocock, with the gunner guiding the missile to target. The missile logic was advanced for its time but demanded a fire-control and training ecosystem very different from conventional kinetic-energy gunfire. [AUSA/Pocock 2020] Sources

Powerpack details differed by national branch. Open sources typically identify the U.S. MBT-70 with a Continental AVCR-1100 air-cooled V-12 diesel around 1,470 hp, while the German KPz-70 used a Daimler-Benz/MTU MB 873 Ka-500 diesel around 1,500 hp. Transmission details and suffixes vary by source; the important well-documented point is that each national branch retained different powerpack preferences, complicating standardization. [AUSA/Pocock 2020; Tank-AFV] Sources

The U.S. XM803 follow-on is usually described with a derated Continental AVCR-1100-3B of about 1,250 hp and a simplified drivetrain/suspension package. This was part of the attempt to produce a cheaper, less technically demanding vehicle after the joint program ended. [AUSA/Pocock 2020; Tank-AFV] Sources

The hydropneumatic suspension was one of the design's most dramatic features. It could raise or lower the hull and assist hull-down positioning; AUSA/Pocock describes the system as a compromise between German desires for higher ground clearance in muddy European conditions and American desires for a lower silhouette. Tank-AFV gives ground clearance from approximately 100 mm when lowered to 710 mm in the raised condition. Those extreme settings are not consistently corroborated. [AUSA/Pocock 2020; Tank-AFV] Sources

Top-speed and range figures vary, but the vehicle was clearly intended to outrun most contemporary MBTs. Secondary specifications commonly give roughly 68-72 km/h road speed and around 580-644 km range depending branch and source. Mobility was a genuine strength, yet the suspension was also expensive and maintenance-sensitive. [Tank-AFV; AUSA/Pocock 2020] Sources

The three-man crew was made possible by the autoloader. Commander, gunner, and driver all sat inside the turret. This reduced crew size and protected volume, but it transferred many tasks normally handled by a loader to mechanical and electrical systems. The driver's rotating station created a human-factors challenge; driver disorientation and sighting complexity are among the most commonly reported criticisms. [Cameron 1998; Tank-AFV] Sources

Specific radio fits varied by national branch and prototype date and are not consistently identified in the open sources in the cited record. A reasonable high-level statement is that MBT-70/KPz-70 was designed for NATO armored command-and-control requirements of the late 1960s, with U.S. and German national communications equipment likely differing. Exact radio models remain uncertain and could differ between prototypes. Sources

Reliability and maintainability were the program's fatal weaknesses. The vehicle concentrated too many immature technologies into one platform: gun/launcher, autoloader, missile guidance, combustible cases, digital fire control, rotating driver station, 20 mm mount, high-output diesel, and hydropneumatic suspension. A system could be impressive in demonstration while still too fragile, expensive, or maintenance-intensive for a field army. [Cameron 1998; AUSA/Pocock 2020] Sources

Cameron's retrospective is useful because it frames MBT-70 as a symptom of a wider 1950s-1970s U.S. tendency to offset enemy numbers with technological complexity before key systems were mature. The later M1 program deliberately adopted a more disciplined balance of proven and advanced technology. [Cameron 1998; Army Science Board 2019] Sources

Over-ambitious systems integration across too many new technologies at once. Sources

Unreliable or immature Shillelagh gun/launcher ecosystem and combustible-case ammunition concerns. Sources

Autoloader and ammunition-handling complexity in a compact turret. Sources

Driver-in-turret human-factors problems, including forward-visibility and disorientation concerns. Sources

Hydropneumatic suspension cost and maintainability burden. Sources

Different U.S. and German preferences for main gun, powerpack, armor, nuclear protection, and deployment assumptions. Sources

Escalating development and projected production costs that eroded legislative and partner certainty. Sources

Production, operators, and combat record

The MBT-70/KPz-70 did not enter production. Its industrial history is therefore a prototype and development-program story, not a mass-production story. The most reliable production statement is "prototype only," with approximately fourteen combined prototypes/pilot hulls in the available accounts and several source-dependent variants of that count. [Tank-AFV] Sources

On the U.S. side, General Motors was the development contractor selected over Chrysler and a Ford/FMC team. That choice reflected certainty that GM could introduce novel engineering ideas and manage advanced automotive and systems technologies. The decision also created industrial friction because Chrysler had long been a major U.S. tank producer. [AUSA/Pocock 2020] Sources

On the German side, the program connected to the wider postwar recovery of German armored-vehicle design and the emerging Leopard 2 path. German firms and government agencies pushed high mobility, strong nuclear-radiation protection, a powerful diesel, and eventually a preference for a 120 mm gun. The cited accounts do not firmly establish the exact company-by-company workshare. [RAND 1981; GAO PSAD-78-1] Sources

Cost was the decisive industrial bottleneck. Initial political expectations were far below the eventual development burden. By late 1968, Pocock recalls a projected unit production cost around $500,000 depending on what was included, while broader program-cost summaries put MBT-70 development in the hundreds of millions of then-year dollars. Those figures are reported as source-specific rather than harmonized into a single exact total. [AUSA/Pocock 2020; Army Science Board 2019; Tank-AFV] Sources

No export production occurred. The Netherlands showed interest during the program, but cost concerns contributed to loss of interest and a decision to procure British Centurion tanks instead. [AUSA/Pocock 2020] Sources

The MBT-70/KPz-70 had no operational operators. It was a test and development vehicle of the U.S. Army and the Bundeswehr/Federal Republic of Germany. It did not equip combat units, deploy to war, or serve in training formations as a standard tank. The proper service-history category is "trials and evaluation.". [Cameron 1998] Sources

The Deutsches Panzermuseum’s cited list includes a KPz-70 or MBT-70 exhibit. Museum vehicles can move between display, restoration, and storage; the precise current locations of other survivors and XM803 are not fully established. [DPM 2026; Tank-AFV] Sources

The MBT-70/KPz-70 has no combat history. It was never issued to combat units and never deployed operationally. Any claim about battlefield performance represent a trial result, engineering inference, or later reputation rather than combat evidence. [Cameron 1998] Sources

Nevertheless, the vehicle was designed in response to real combat expectations. Its intended battlefield was Central Europe under the threat of large Warsaw Pact tank formations, possible NBC effects, and long-range anti-armor engagements. The design logic also reflected lessons and anxieties from U.S. armored-vehicle programs such as Sheridan and M60A2, where missile/gun systems promised advantages but created reliability and procurement problems. [Cameron 1998; GAO B-163058] Sources

Myth: MBT-70 was simply a failed early Abrams. Evidence: it was a distinct joint program with a very different crew layout, gun/launcher, missile concept, and suspension. It influenced the Abrams path but was not a direct prototype for the production M1. Sources

Myth: KPz-70 was a German production tank prototype that nearly became Leopard 2 unchanged. Evidence: it was the German branch of a joint program; Leopard 2 drew lessons and requirements from the experience but became a separate, more conventional design family. Sources

Myth: the vehicle failed because one subsystem was bad. Evidence: Shillelagh, the autoloader, driver station, suspension, cost, standards, and national requirements all interacted; no single fault explains the whole failure. Sources

Myth: its futuristic features were useless. Evidence: laser rangefinders, digital ballistic computation, advanced stabilization, high mobility, and systems integration all mattered later; the problem was maturity and integration, not imagination alone. Sources

Legacy and historical evidence

Its battlefield value was never demonstrated operationally. On paper, MBT-70/KPz-70 combined exceptional mobility, advanced fire control, missile range, and low silhouette. In practice, its value would have depended on reliability, ammunition safety, crew adaptation to the turret-driver layout, and whether NATO could afford and maintain it at scale. A less capable but fielded tank usually has more strategic value than a brilliant prototype that cannot be bought or supported. [RAND 1981; Cameron 1998] Sources

The legacy of MBT-70/KPz-70 is best understood as a split inheritance. West Germany used the failure to pivot toward Leopard 2, while the United States used the failure of MBT-70 and XM803 to shape the XM1/M1 Abrams acquisition path. GAO explicitly presents MBT-70, XM803, and XM1 as a sequence of U.S. tank development efforts, with Germany completing Leopard 2 in 1974 during the same post-cancellation period. [GAO PSAD-78-1] Sources

Technical influence cannot be overstated into direct component identity. The production M1 Abrams did not retain the driver-in-turret layout, 152 mm gun/launcher, Shillelagh missile, 20 mm turret cannon, or hydropneumatic suspension. The Leopard 2 likewise emerged with a conventional crew layout and 120 mm smoothbore gun. The influence was stronger at the level of lessons: fire-control sophistication, stabilization, high mobility, crew protection, and the need to mature technology before committing it to production. [Cameron 1998; Army Science Board 2019] Sources

Doctrinally, the program helped end the well-documented Western love affair with missile-armed main battle tanks. Missiles continued to matter on helicopters, infantry anti-tank systems, and some dedicated vehicles, but the NATO production MBT line returned to high-velocity tank guns, especially the German 120 mm smoothbore that later crossed into U.S. Abrams service. RAND notes that a later U.S.-German collaboration succeeded more narrowly when the German 120 mm gun was accepted for later XM1 variants. [RAND 1981] Sources

Museum survival gives the MBT-70/KPz-70 an unusually strong visual legacy. Its low body, broad turret, retractable 20 mm cannon, and unusual arrangement still make it look futuristic next to both earlier Pattons and later conventional MBTs. The surviving vehicles display the program's technical ambition, but their appearance does not establish that it was close to successful production. [DPM 2026; Tank-AFV] Sources

MBT-70’s participants and cancellation sequence are widely documented. Detailed prototype accounting, paper support vehicles, and current survivor inventories remain less fully resolved. Sources

The MBT-70/KPz-70 was a joint U.S.-West German main battle tank program beginning in 1963. Sources

It was a prototype-only/cancelled program and never entered combat or operational service. Sources

It used a three-man crew entirely in the turret, a driver-in-turret station, an autoloader, hydropneumatic suspension, a 152 mm gun/launcher, Shillelagh missile compatibility, a 20 mm cannon, and advanced fire-control concepts. Sources

Cost growth, technical complexity, and differing national requirements were central causes of failure. Sources

The program influenced the later Leopard 2 and M1 Abrams development paths, while not being a direct production variant of either. Sources

These are stable in broad outline but differ across open sources and prototype dates. Sources

The cited sources describeprecise armor thickness/composition, individual prototype numbering, and the status of support-vehicle concepts unless substantiated by primary documents. Sources

Disputed production totals: use "prototype-only" as the well-documented statement and "approximately fourteen combined program prototypes/pilot hulls" as the cited accounts-consistent figure. Prototype quantities are not operational production totals. [Tank-AFV] Sources

MBT-70 never entered service. The principal program dates are the 1963 agreement, Germany’s withdrawal in 1969, the joint program’s end in January 1970, and the subsequent XM803 termination, variously dated 1971 or 1972 depending on the administrative milestone. [RAND 1981; Cameron 1998; AUSA/Pocock 2020] Sources

MBT-70 and KPz-70 were the American and German names associated with the joint program. The German branch retained its own development details, while XM803 was a subsequent U.S. effort rather than another name for every joint-program vehicle. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

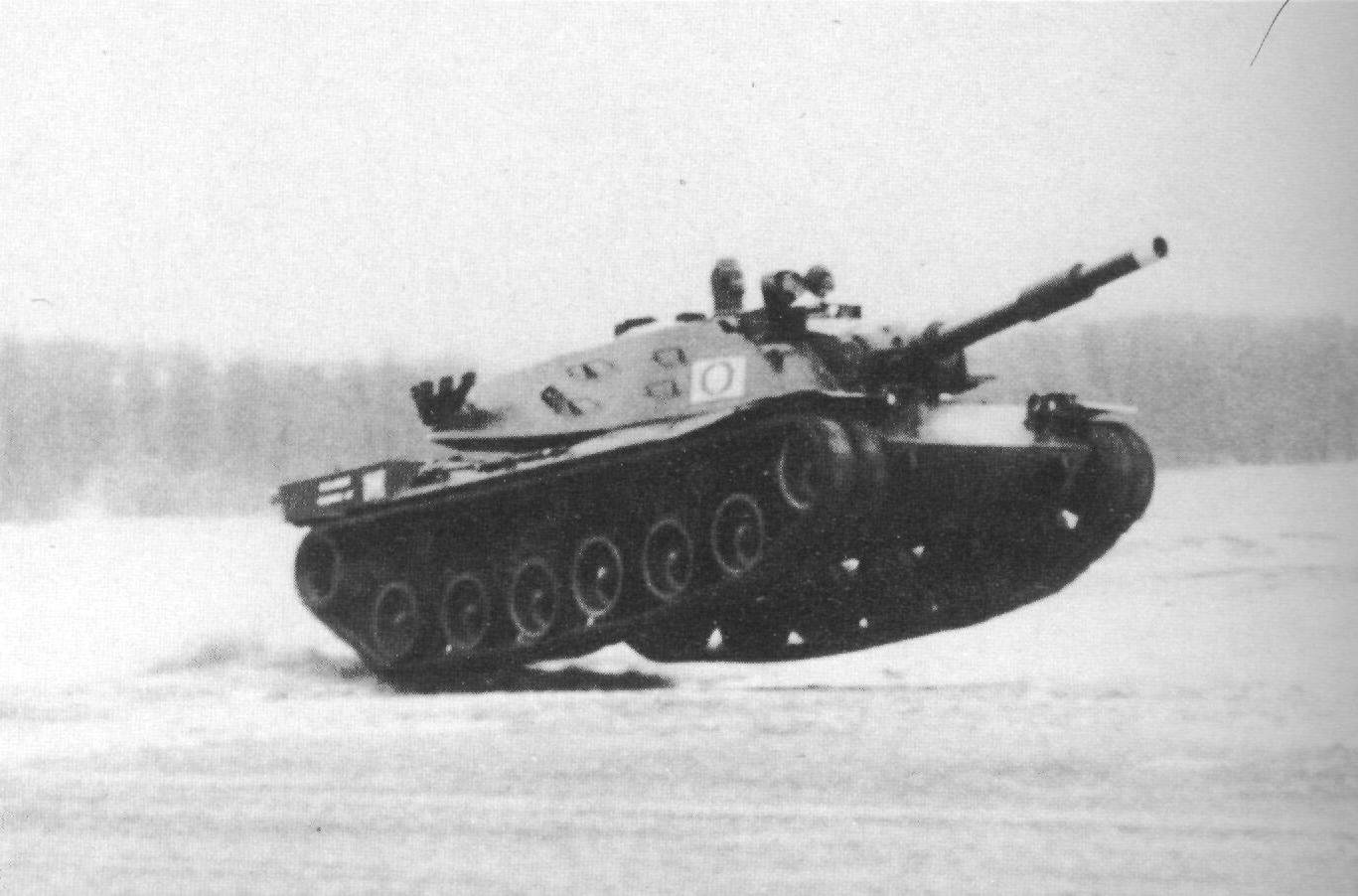

American MBT-70 prototype during Aberdeen Proving Ground speed tests. U.S. MBT-70 prototype. Date/. Aberdeen Proving Ground context; exact date not stated on the Commons file page. Shows the mobility/suspension discussion, but not a measured performance record by itself.U.S. Army; public domain, U.S. federal government work / PD-USGov.Image source

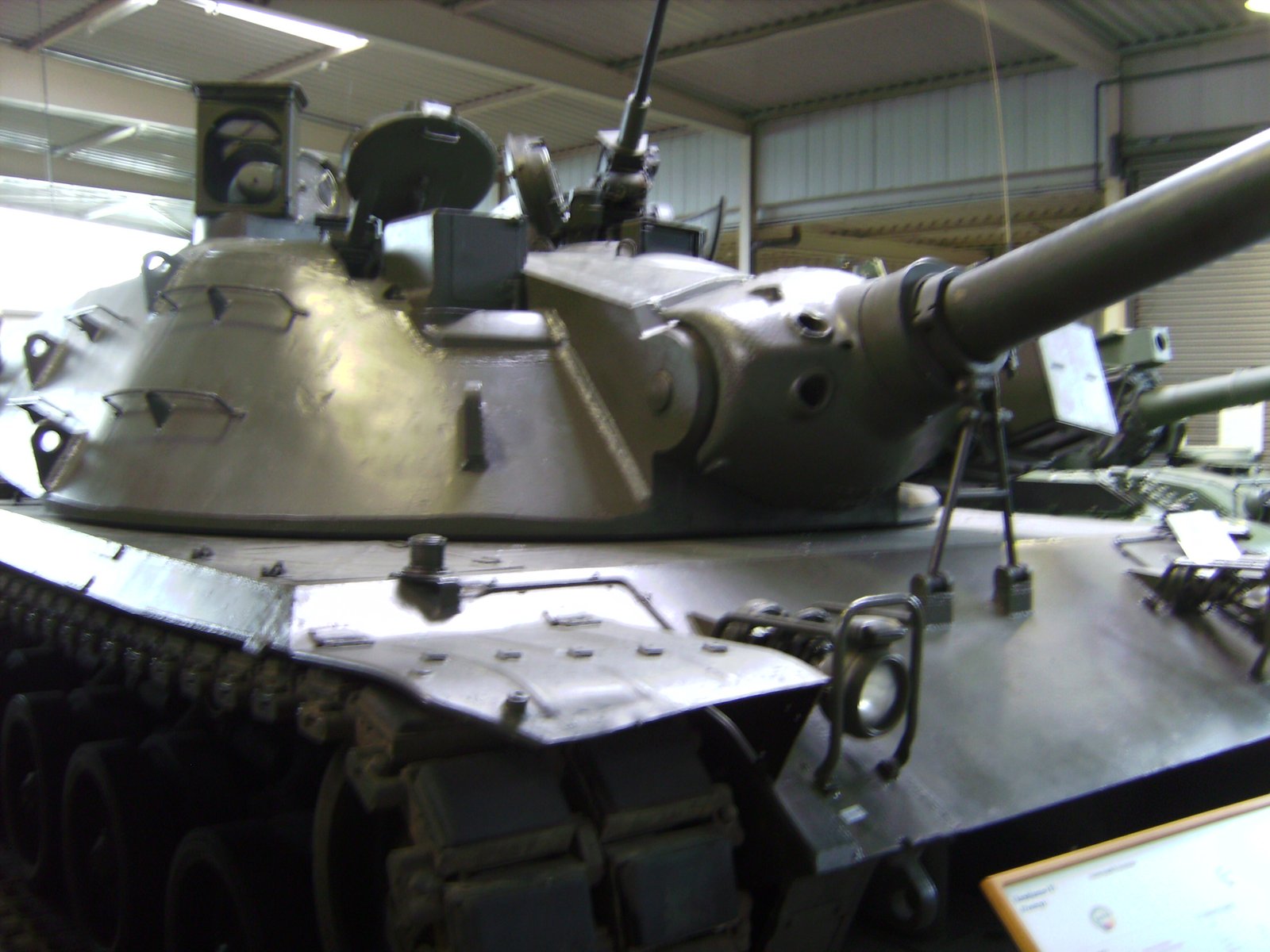

Preserved KPz-70 turret and 152 mm gun/launcher detail, September 2010. Exact museum location is uncertain; display fittings may differ from its trial configuration.Steinbeisser; CC0 1.0 Universal Public Domain Dedication.Image source

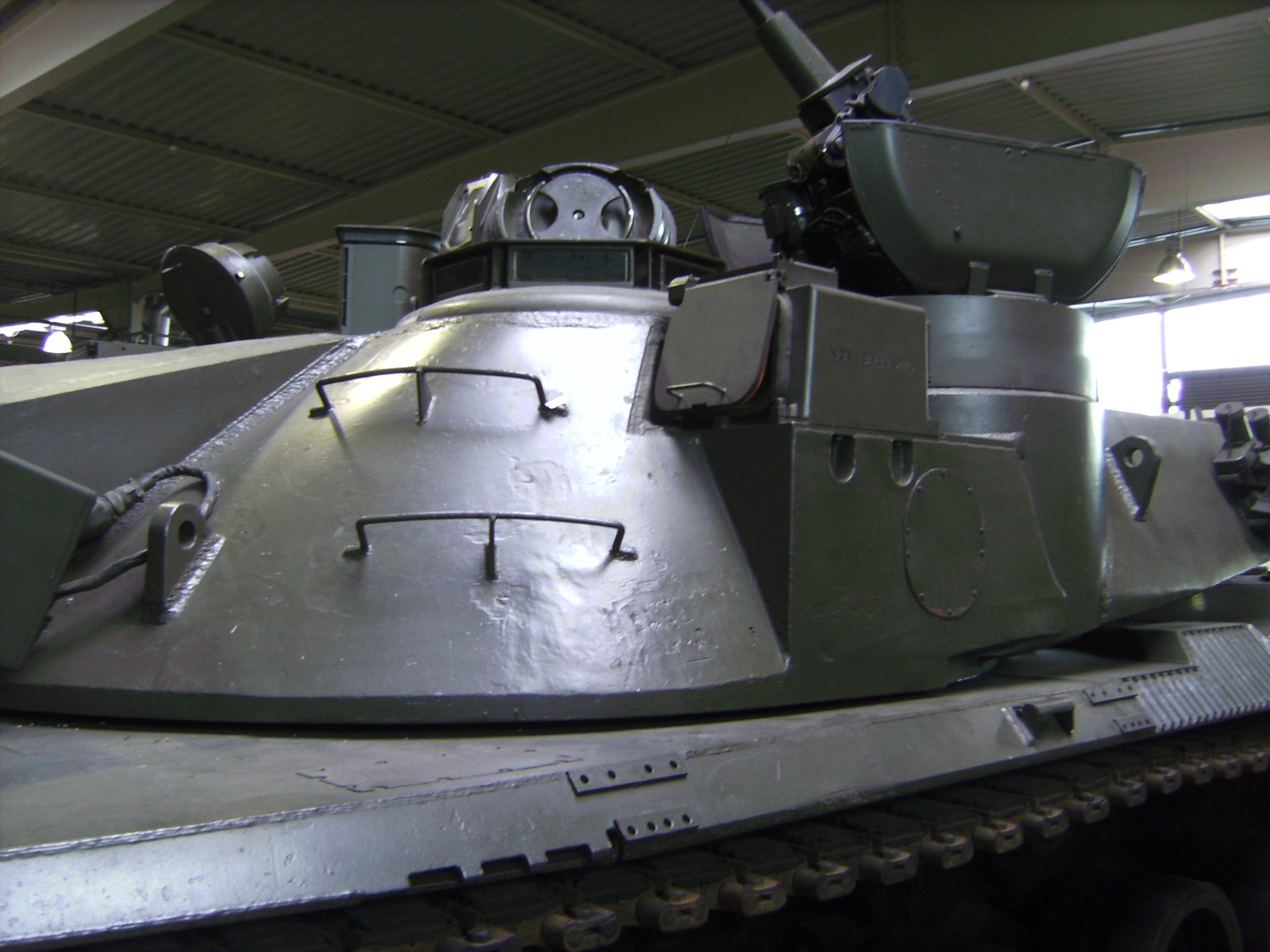

Preserved KPz-70 turret and secondary-armament detail, September 2010. Exact museum location is uncertain.Steinbeisser; CC0 1.0 Universal Public Domain Dedication.Image source

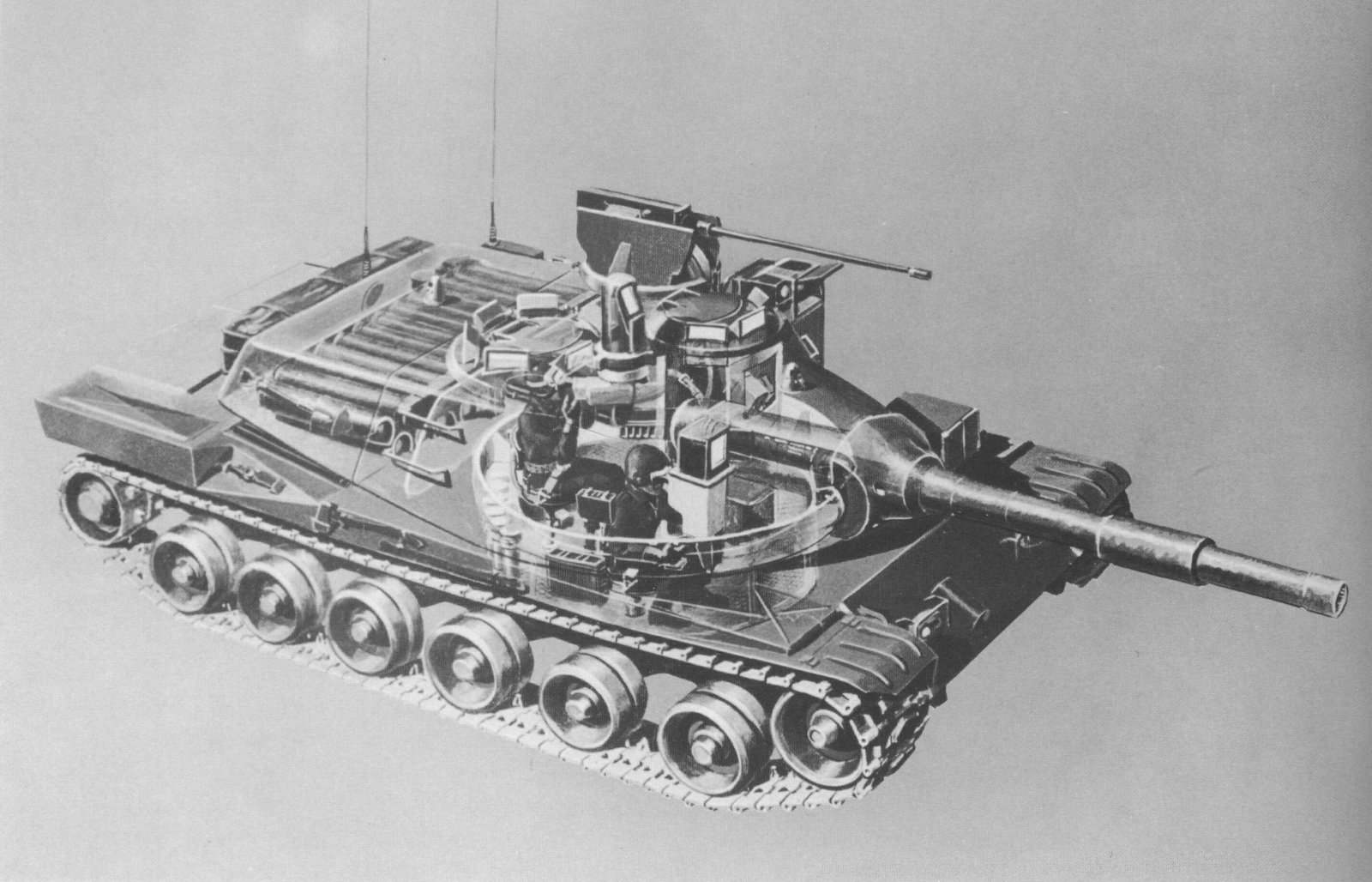

MBT-70 interior arrangement / cutaway illustrating the all-turret crew concept and driver station. not stated on Commons file page. technical illustration, not a photograph; use to explain layout, not armor thickness or ammunition capacity.public domain, U.S. federal government work / PD-USGov.Image source
