An emergency light tank that became a global family
The M3/M5 Stuart family grew from the United States Army’s prewar light-tank line at the moment when mobilization demanded vehicles immediately, not after a long clean-sheet development program. The family therefore combined evolutionary design with extraordinary industrial reach. It equipped expanding American formations, reached British forces through Lend-Lease, and later appeared with Soviet, Chinese, Free French, Commonwealth, and postwar operators. Its significance cannot be reduced to one battlefield verdict because the same tank served very different missions across very different theaters. Sources
At the beginning of the war, a fast four-man tank with a 37 mm gun, useful armor, and a dependable power train could still function as a light battle tank. By the middle of the war in Europe, that combination was increasingly inadequate against improved antitank guns and German medium armor. The family did not thereby become useless. It moved toward reconnaissance, flank security, liaison, infantry support, and training, while remaining especially practical in Pacific and secondary-theater conditions where size, reliability, and mobility could matter more than the ability to defeat late-war European tanks frontally. Sources
Published accounts describe Stuart as a family name. M3, M3A1, M3A3, M5, and M5A1 were not interchangeable labels for one unchanged vehicle. They differed in hull construction, turret arrangements, radio and stowage space, engines, transmissions, and production details. British designations and the nickname Honey coexist with the American model sequence. Some nickname accounts and operator-specific equipment details remain uncertain. Sources
From M2 ancestry to M5 automotive redesign
The M3 was an improved descendant of the M2 Light Tank rather than a completely new architecture. It kept a rear engine, front final drive, vertical-volute suspension, and a central fighting compartment crossed by a driveshaft cover. That arrangement was producible and mechanically familiar, but it consumed valuable interior space. Early hulls and turrets also reflected changing riveted and welded practice, while the four-man crew left the commander with a heavier workload than later five-man medium-tank organizations would accept. Sources
The M3A1 concentrated on fighting-compartment improvements. A turret basket or floor, power traverse, and stabilization-related equipment improved turret operation without curing the basic limitations of a small 37 mm-armed tank. The M3A3 redesigned the hull and added a more spacious turret-bustle arrangement, producing the silhouette associated with the British Stuart V. These changes made the vehicle easier to operate and equipped it better for radio and stowage needs, but they could not create unlimited growth space inside a light chassis. Sources
The M5 represented the family’s major industrial adaptation. Competition for radial engines encouraged the use of twin Cadillac automobile engines with Hydra-Matic transmissions. The result had a reworked hull and raised rear deck, with the M5A1 combining that automotive arrangement with the later turret form. The redesign improved supply flexibility and operator familiarity but retained the 37 mm gun. Industrial modernization and tactical modernization therefore diverged: the later Stuart could be easier to produce and maintain while remaining under-gunned for the European medium-tank fight. Sources
Across the family, protection was respectable for an early light tank but highly configuration-sensitive. Maximum figures near 50–51 mm is not established as uniform armor. Machine-gun positions and ammunition capacities also changed. Sources
Production scale, variants, and counting boundaries
The Stuart family was produced on a scale that made it one of the defining Allied light-tank systems of the war. Published accounts give approximately 22,700 gun tanks as the safest project-level description. Common variant tallies add to 22,743, while other summaries use 22,744 or round the total. Those tiny numerical differences matter less than the counting boundary: M8 howitzer motor carriages, field conversions, and postwar rebuilds cannot be folded into the gun-tank total merely because they used Stuart components or chassis. Sources
The main sequence moved from M3 to M3A1 and M3A3, then to M5 and M5A1. American Car & Foundry was central to the M3-series story, while General Motors and Cadillac technology shaped the M5 redesign. Monthly production, factory allocation, diesel subvariants, and acceptance categories are not fully reconciled by the cited secondary totals. Sources
Derivatives demonstrate both the versatility and the boundary problems of the chassis. The M8 75 mm Howitzer Motor Carriage was a purpose-built close-support vehicle and is not another Stuart gun tank. The cited accounts do not firmly establish M3A1 Satan flamethrower conversions, dozer-equipped tanks, and turretless recovery or reconnaissance conversions. The T7/M7 belongs to the replacement-development path, not the Stuart variant list. Brazilian X1A/X1A2 vehicles show a genuine Stuart lineage but constitute deep Cold War rebuilds with enough change to justify separate treatment. Sources
Combat value depended on theater and mission
British use in North Africa established the Stuart’s most enduring reputation. Crews valued mechanical performance and speed and associated the tank with the approving nickname “Honey,” yet they also encountered the limitations of its gun and fighting compartment. As Axis armor and antitank defenses improved, reliability could not compensate for inadequate effect against stronger opponents. The Stuart’s early role as a light battle tank increasingly gave way to reconnaissance and security tasks. Sources
American experience followed a similar chronology. The family appeared in the Philippines, North Africa, Italy, northwest Europe, and the Pacific. In Europe, the 37 mm gun and light protection made direct tank combat increasingly hazardous, and light-tank companies were better used for scouting, flank protection, liaison, and missions where speed and small size could be exploited. In the Pacific, heavier tanks were not always the most practical answer. Jungle tracks, restricted bridges, difficult landing conditions, and opposing light armor gave the Stuart a longer useful combat life in infantry-support and mobile-firepower roles. Sources
Lend-Lease and Allied transfers created additional service histories that cannot be combined into a generic export paragraph. Soviet, Chinese, Free French, and Commonwealth vehicles operated with different radios, stowage, tactical practices, and supply systems. Production, shipment, delivery, issue, loss, and operational inventory are distinct categories. Sources
The family’s weaknesses are real: cramped working space, limited high-explosive effect, thin protection by mid-war standards, and a gun unable to defeat many later armored opponents. Its strengths are equally real: dependable mobility, industrial availability, modest size, and the ability to perform missions that did not require medium-tank firepower. The historically useful judgment is therefore chronological and mission-specific, not a single score of good or bad. Sources
A long afterlife in support, training, and reconstruction
The Stuart’s legacy continued after it ceased to be a first-choice U.S. combat tank. It trained large numbers of crews, supported reconnaissance organizations, and provided an adaptable chassis for specialized wartime vehicles. Postwar aid transferred survivors to armies that valued a light, mechanically familiar vehicle more than the latest armor standard. Sources
The family also illustrates how doctrinal labels change. A light tank designed to scout, exploit, and fight in 1941 could become primarily a reconnaissance vehicle by 1944 without undergoing a corresponding redesign. That shift says as much about the battlefield’s changing threat and the arrival of M4 Shermans and M24 Chaffees as it does about the Stuart itself. The T7/M7 failure and the eventual M24 solution show that simply enlarging an existing light-tank concept was not enough; the successor required more useful firepower and a better-balanced fighting compartment. Sources
Several attractive claims remain open. Exact variant production and diesel counts need official ledgers. “Honey” is reported as a well-established crew nickname with a partly anecdotal origin story. The cited accounts do not firmly establish current or very late postwar operator status. The cited accounts do not firmly establish field-conversion counts, survivor identities, and national radio/stowage configurations. Sources
Image evidence and publication limits

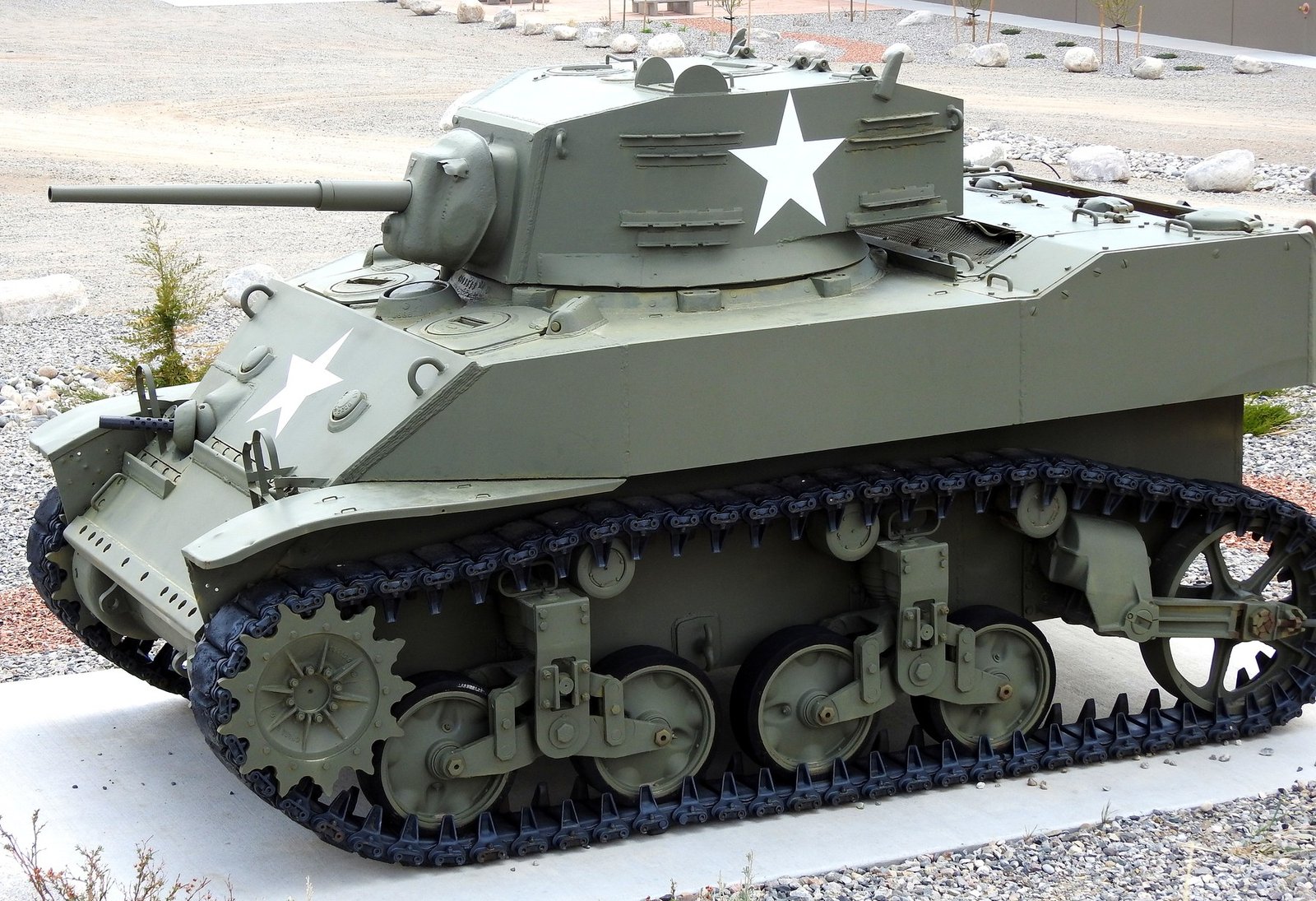

The five images provide a useful visual cross-section: an M3/M3A1-type survivor, an M5A1, an M3A3, a late-production M5A1 in an official or public-domain image stream, and a Brazilian display vehicle. They help distinguish major hull and turret forms and demonstrate the family’s long geographic afterlife. They do not, by themselves, establish a complete production sequence or a particular vehicle’s wartime service. Sources
Museum survivors may combine restoration choices, replacement parts, postwar fittings, or markings that do not represent factory condition. The cited accounts do not firmly establish the Aberdeen survivor’s identity and markings. The late M5A1 image lacks a complete date and location in the source description. The Brazilian vehicle is evidence of postwar presence, not of wartime U.S. configuration. Sources
