From emergency design to mature infantry-tank family
The Churchill began as an emergency wartime response and matured into one of Britain’s most adaptable armored chassis. Officially the Infantry Tank Mk IV, A22, it reflected doctrine that valued armor, obstacle crossing and close cooperation with infantry more than road speed. Early production moved ahead before normal prototype development had resolved mechanical and armament problems. The first marks were therefore under-gunned and unreliable by later standards, yet extensive rework transformed the family into a durable gun tank and an especially useful basis for assault-engineer vehicles. Sources
It does not treat every rebuild as a newly produced tank, nor does it fold AVRE, Crocodile, ARK, bridgelayer, recovery and Gun Carrier figures into a gun-tank total without an explicit source rule. Approximately 5,640 is a commonly cited Churchill production total, but the exact accounting remains disputed. A20 is antecedent development; A33 Excelsior, A43 Black Prince and the Anglo-American T14 remain separate programs rather than Churchill marks. Sources
The A20 requirement and the 1940 crisis
Prewar British planning anticipated that infantry tanks might need to cross trenches, shell holes and fortified ground while moving with foot soldiers. The A20 requirement reflected that expectation. France’s collapse and the evacuation from Dunkirk then created an immediate need for armored vehicles, compressing the development cycle and shifting work toward the A22. Vauxhall’s design and production effort produced a long hull with tracks running high around the sides, a layout that supported climbing and obstacle performance but limited speed and complicated maintenance. Sources
The decision to manufacture before full proving explains many early failures without proving that the basic concept was useless. Engines, gearboxes, cooling, tracks and other systems had to be corrected while vehicles were already entering units. Initial production marks, rework programs, and mature vehicles represented different stages of Churchill development. Later performance cannot erase the early defects, while the early defects cannot be projected unchanged onto every Churchill in Tunisia, Italy or North-West Europe. Factory records, modification instructions and unit workshop reports remain necessary to define when particular improvements reached service. Sources
Armor, guns and mark-specific configurations
Churchill protection increased substantially across the family. Early vehicles combined heavy armor with the 2-pounder, and some marks carried a hull howitzer or close-support weapon. Mk III and IV vehicles introduced the 6-pounder, later marks adopted British 75 mm weapons, and the Mk VII/A22F represented a major redesign with thicker protection and a revised turret. Likewise, ammunition capacity, crew arrangement and secondary weapons changed between configurations. Sources
The NA75 illustrates wartime adaptation. Workshops fitted 75 mm guns and mantlets recovered from Shermans to Churchill turrets, improving high-explosive capability in the Mediterranean theater. That conversion is historically important but is not established as a factory mark produced from new hulls. Close-support Mk V and VIII vehicles, ordinary gun tanks and specialized engineer vehicles also had different tactical purposes. The Churchill’s low road speed was an accepted consequence of infantry-tank doctrine, while its low gearing, track layout and tractive behavior could provide exceptional rough-ground performance. Published road figures alone cannot describe that operational advantage. Sources
Production, rebuilding and the specialist branches
Vauxhall led Churchill development and production, with a wider industrial network supporting manufacture. The family total often appears as approximately 5,640, but the number needs a defined Gun tanks were rebuilt from one mark to another, damaged vehicles returned to service, and existing chassis converted into specialist equipment. A converted Mk VII Crocodile or rebuilt Mk IV cannot automatically be counted as both an additional gun tank and a new specialist chassis. Sources
The family’s specialist range was unusually important. AVREs carried engineer weapons and equipment; Crocodiles used a flame projector and armored fuel trailer; ARKs became mobile ramps; bridgelayers carried separate bridge systems; recovery vehicles supported armored formations; and the 3-inch Gun Carrier represented a limited antitank experiment. These vehicles belong in the Churchill family story because they exploited the chassis’s armor, internal volume and obstacle-crossing ability. Sources
Combat from Dieppe to Korea
Dieppe became the Churchill’s most famous early combat episode, but the raid cannot be used as a single-variable test of tank design. Beach obstacles, shingle, seawalls, landing craft timing, engineer support, tactical planning and recovery all shaped what the Calgary Regiment’s tanks could accomplish. Some Churchills moved and fought beyond the waterline; others were immobilized or could not leave the beach. Detailed unit evidence is necessary before assigning every loss to mechanical failure or, in the opposite direction, minimizing the design’s genuine early problems. Sources
Subsequent service in Tunisia demonstrated improved reliability and useful climbing performance. Churchills later fought in Italy and North-West Europe, where heavy armor and specialist variants supported assaults, obstacle reduction and close infantry cooperation. The type’s tactical value depended on terrain and mission: it was not a fast exploitation tank, but in difficult ground it could go where faster vehicles struggled. Postwar service, including Korea, belongs to the mature family rather than the emergency 1941 configuration. Specific combat claims, losses, and mark distributions remain incompletely documented. Sources
Legacy, evidence boundaries and image selection
The Churchill’s development shows how a flawed emergency design could be improved through sustained engineering, modification and operational learning. It never became a balanced universal tank, and its bulk and speed imposed costs. Its mature armor, climbing ability and adaptable chassis nevertheless made it valuable in assault and engineer roles that ordinary cruiser or medium tanks could not fill as readily. Black Prince extended the concept around a 17-pounder but remained a separate prototype; it cannot reliably imply a wartime Churchill production mark. Sources

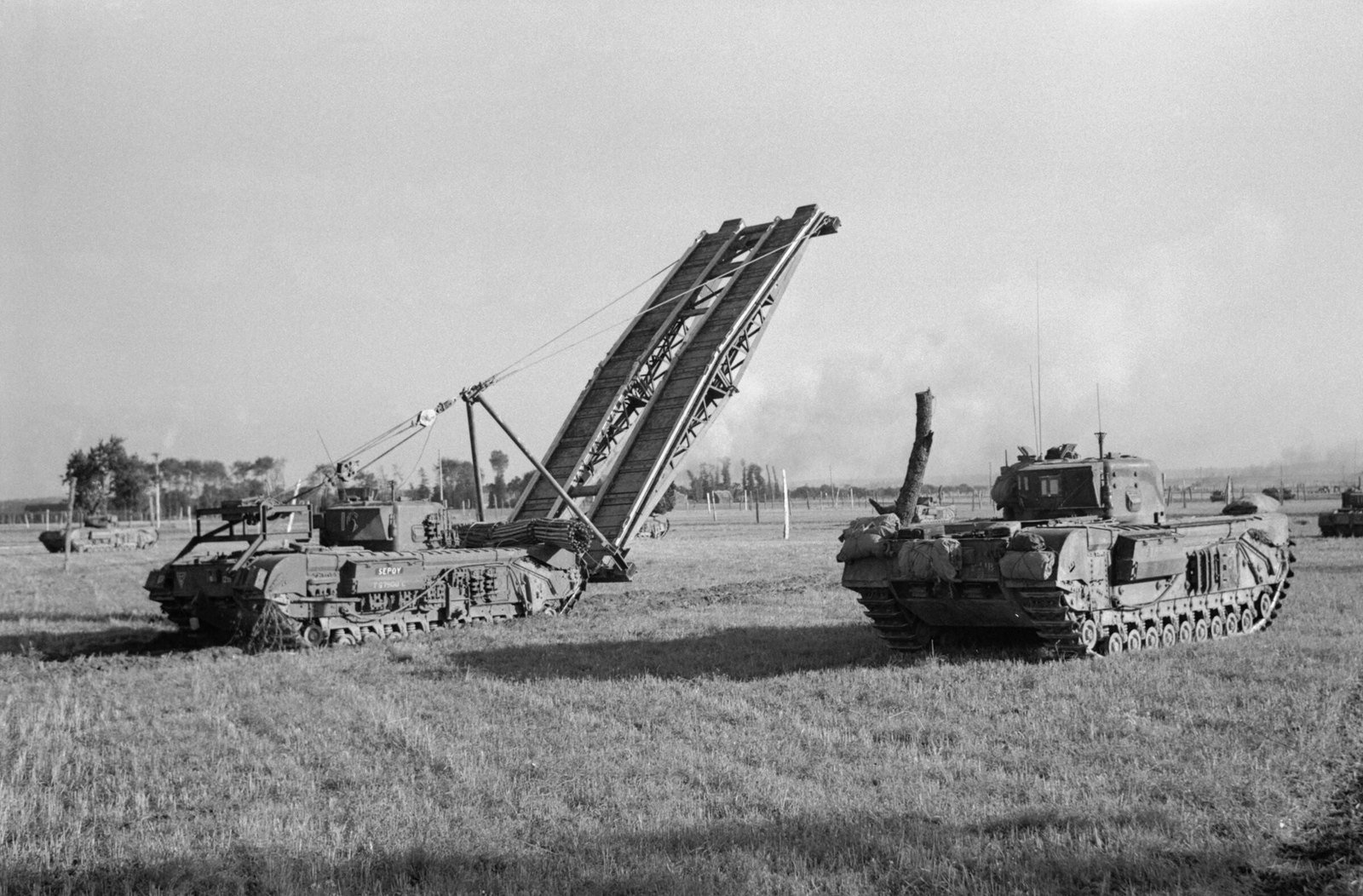

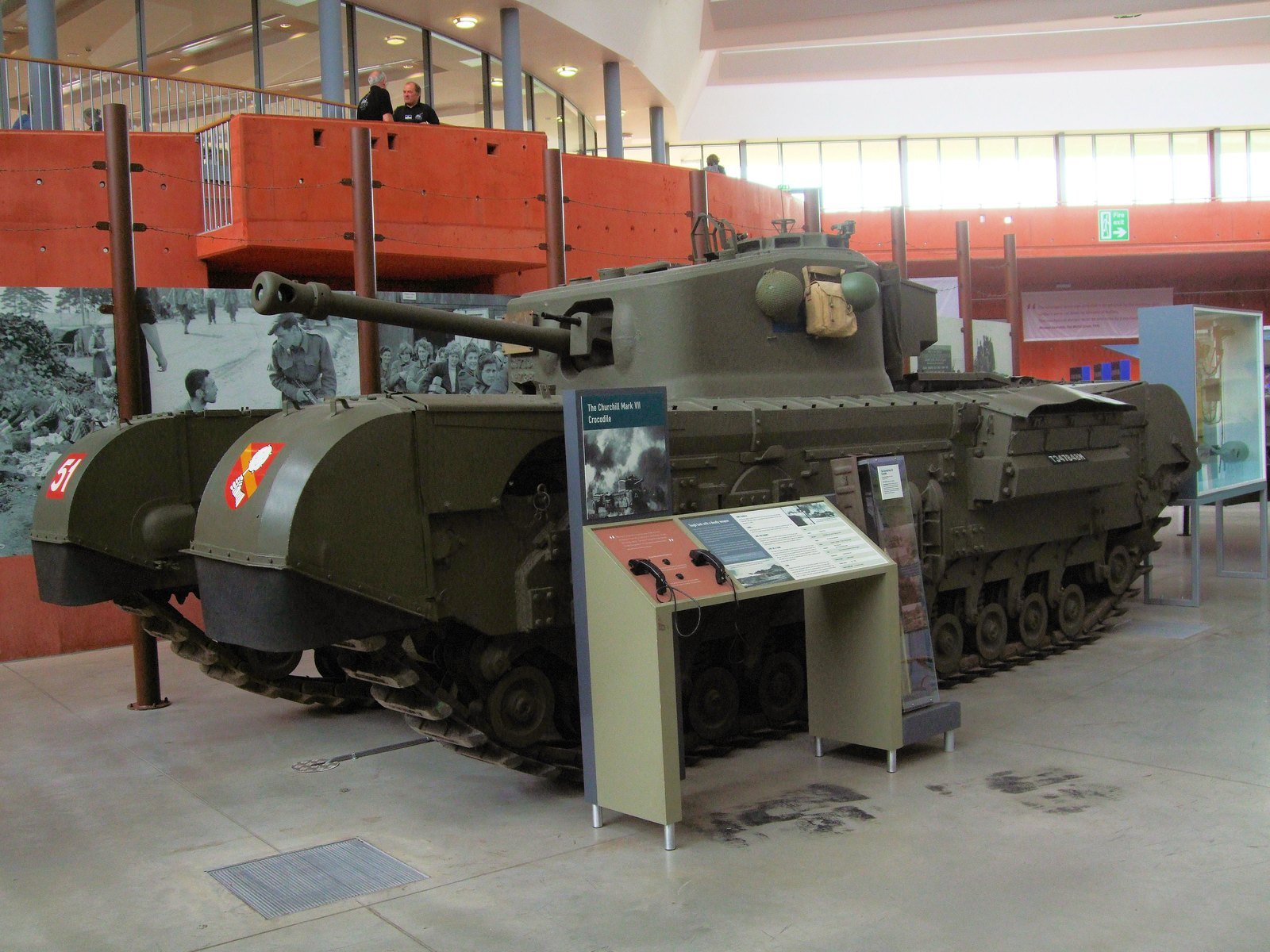

Major unresolved questions concern production and rebuild accounting, mark-specific armor and armament, NA75 conversion records, specialist conversion totals and unit-level combat chronology. The six images span a late-mark official view, Tunisia, a gun-tank and bridgelayer scene, a Mk I survivor, a reconstructed museum Crocodile and an AVRE monument. Those contexts is important. The museum Crocodile combines a tank and trailer with separate histories, and preserved vehicles do not represent untouched wartime configurations. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
.jpg){kind=link}
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- S1. The Tank Museum, “Churchill.” URL/source:. Accessed 2026-06-01. Official museum collection page; supported identity, role, production total, broad armament progression, Crocodile and Black Prince notes
- S2. Royal Tank Regiment, “Churchill.” URL/source:. Accessed 2026-06-01. Regimental vehicle page; supported compact specifications, armament by mark, engine, range, speed, crew and armor figures
- S3. Stellantis Media / Vauxhall, “Vauxhall’s A22 Infantry ‘Churchill’ Tank.” URL/source:. Accessed 2026-06-01. Manufacturer heritage article; supported Vauxhall design role, Harold Drew, Bedford engine, Merritt-Brown steering and rapid development context
- S4. DITSONG Museums of South Africa, “Churchill Mark IV Infantry Tank.” URL/source:. Accessed 2026-06-01. Museum article; supported A20 antecedent, Harland & Wolff pilots, 1939 trench-warfare context and South African survivor/service notes. Some numerical specification entries were treated cautiously due internal inconsistencies
- S5. HistoryOfWar.org, “Infantry Tank Mk IV, Churchill (A22).” URL/source:. Accessed 2026-06-01. Secondary synthesis; supported production organization, early reliability crisis, mark progression, layout and design details
- S6. Tank Encyclopedia, “A.22D, Churchill Gun Carrier.” URL/source:. Accessed 2026-06-01. Specialized-vehicle article; supported Gun Carrier identity, quantity and obsolescence.
- S7. Royal Tank Regiment, “Korea Day 27th July 1953.” URL/source:. Accessed 2026-06-01. Regimental history page; supported Churchill
- S8. Imperial War Museums, “CHURCHILL TANKS [Allocated Title]” (film record AYY 382/1/1). URL/source:. Accessed 2026-06-01. IWM film catalogue record
- S9. Imperial War Museums, “Churchill Tanks in Italy, July 1944” (TR 2018). URL/source:. Accessed 2026-06-01. IWM photograph catalogue record
- S11. Wikimedia Commons image file pages for KID 902, NA 911, BU 860, Churchill Mk I Bovington, Churchill Crocodile Bovington and Churchill AVRE Graye. URL/source:. Accessed 2026-06-01. Image metadata, source provenance and licensing for photographs
- S12. Hugh G. Henry, “The Calgary Tanks at Dieppe,” Canadian Military History 4:1 (1995). Further reading; not independently consulted. Source
