Infantry Tank Mk I Matilda I / A11

A11E1 Matilda I prototype, dated 1936 in Imperial War Museums photograph KID 68.Official photographer unidentified; Imperial War Museums KID 68; source record states expired Crown copyright.Image source

Overview and classification

The A11 Matilda I was a small British infantry tank designed around unusually heavy protection for a two-man vehicle. Its armament was a machine gun rather than an anti-tank cannon. This combination makes more sense in the context of supporting infantry against defended positions than when the tank is classified merely by its small dimensions. The account explicitly separates it from light reconnaissance tanks and from the larger, four-man A12 Matilda II. Sources

Only a limited production program followed the prototype. The available evidence commonly describes 139 production vehicles, while Published accounts describe 140. Inclusion of the prototype is a possible explanation to investigate, not a reconciliation already proved. The vehicle's short combat career and its surviving museum examples therefore need a careful distinction between manufacturing totals, actual deployment and later restoration. Sources

Requirements and prototype development

The development requirement of 1935 emphasized economy and protection, accepting low speed and simple armament. Vickers and John Carden are central to the published account. Commercial automotive components offered a way to control cost, while a compact hull reduced the area requiring thick armor. The resulting design was not a scaled-down Matilda II: the two programs embodied different crew and fighting arrangements. Sources

The A11E1 prototype belongs to 1936, even though the protected research list uses 1937 as its sorting year. Trials and subsequent detail changes affected the hull front, exhaust and fittings. The source's delivery account places the production flow in 1939–1940. Sources

Hull, turret and crew workload

The driver occupied the forward hull, with the commander in the small turret and the engine compartment behind. The commander also handled the weapon and much of the observation and communication workload. A two-man crew could not divide those duties as readily as a larger tank crew, particularly when buttoned up, navigating or trying to coordinate with infantry. Sources

Published accounts describe a protection range extending to about 60 mm on the strongest surfaces, with thinner plates elsewhere. It describes riveted hull construction and substantial cast elements. Heavy protection could frustrate particular weapons under favorable circumstances, but did not make tracks, openings or the whole vehicle invulnerable. The small turret and limited weapon arrangement also imposed restrictions that extra armor could not solve. Sources

Armament and equipment

A water-cooled .303-inch Vickers machine gun was the characteristic main armament. A.50-inch alternative appears in the available evidence, but its presence on some vehicles cannot establish a confidently counted manufacturing subtype without records. Published accounts describe a representative ammunition allowance around 4,000 rounds and no separate anti-tank gun. Its defensive strength and ability to suppress infantry were consequently different from its ability to defeat enemy armor. Sources

Production radio descriptions refer to the No. 11 wireless set, while the prototype's equipment is less certain. The cramped interior and commander workload matter when interpreting that fit: the existence of a radio does not establish how effectively every crew used it in combat. Smoke fittings and experimental equipment are not fully documented. Later specialist Matilda II equipment belongs to the A12 article, not this one. Sources

Power, mobility and manufacturing

A Ford V8 engine of approximately 70 hp and a commercially derived transmission powered a tank weighing roughly 11 tonnes. The suspension used small road wheels and leaf-sprung bogie arrangements. Published speeds of about 8 mph on roads and lower cross-country performance underline the deliberate acceptance of slow movement. Range figures remain qualified source specifications rather than a promise of practical reach during retreat or sustained operations. Sources

The vehicle was built in a comparatively small series. The retained production evidence keeps quantities, ordering and deliveries separate, and does not infer a firm unit cost from an isolated program figure. Mechanical availability depended on maintenance and recovery as well as engine power. In France, the difficulty of bringing damaged or immobilized vehicles back into service was part of their loss history, not simply proof that their armor had been penetrated. Sources

France and the Arras counterattack

Accounts place the principal combat employment with the British Expeditionary Force, including the 4th and 7th Royal Tank Regiments. It cites 97 sent to France, but theater totals is distinct from the strength available at Arras on 21 May 1940. Pre-attack force figures distinguish Matilda I, Matilda II and light tanks and still need their underlying returns checked before being presented as a complete order of battle. Sources

At Arras, the heavily protected British tanks created a local shock, particularly where enemy weapons could not readily defeat their armor. That is not evidence of immunity to all artillery or of freedom from mechanical failure, track damage and fuel problems. The account connects their eventual loss to the wider campaign and evacuation. It does not establish a separate A11 combat career in North Africa or the Pacific, and broad claims about its sole responsibility for the Dunkirk outcome would exceed the evidence. Sources

Legacy and preserved examples

The A11 illustrates both the attraction and the limits of a protected infantry-support vehicle designed to a restricted budget. Its small crew, low speed and machine-gun-only armament reduced flexibility. The A12 responded to a different and larger requirement rather than being merely an A11 with a cannon added. Sources

Surviving examples require individual biographies. Accounts describe the running HMH 802, associated with T3447, as recovered from range use and restored with a non-original engine and gearbox. The vehicle displayed as Demon has a separate history and representational finish. Their photographs are valuable for explaining form and surviving components, but cannot be treated as untouched snapshots of a particular French battlefield configuration. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

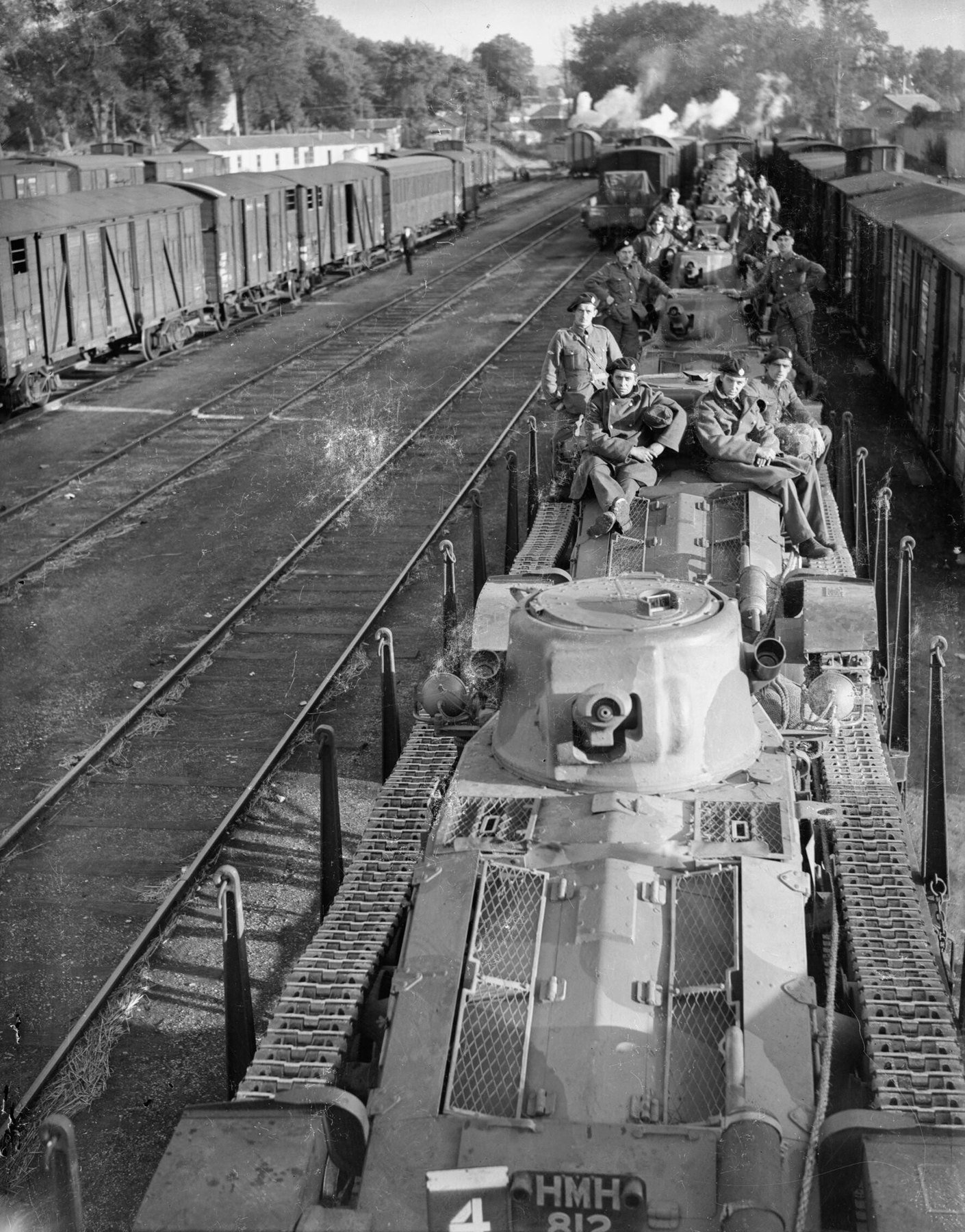

Matilda Mk I tanks of 4th Royal Tank Regiment being transported by train from Cherbourg to Amiens, 28 September 1939.Imperial War Museums O 576 / War Office Second World War Official Collection; UK Government public-domain status.Image source

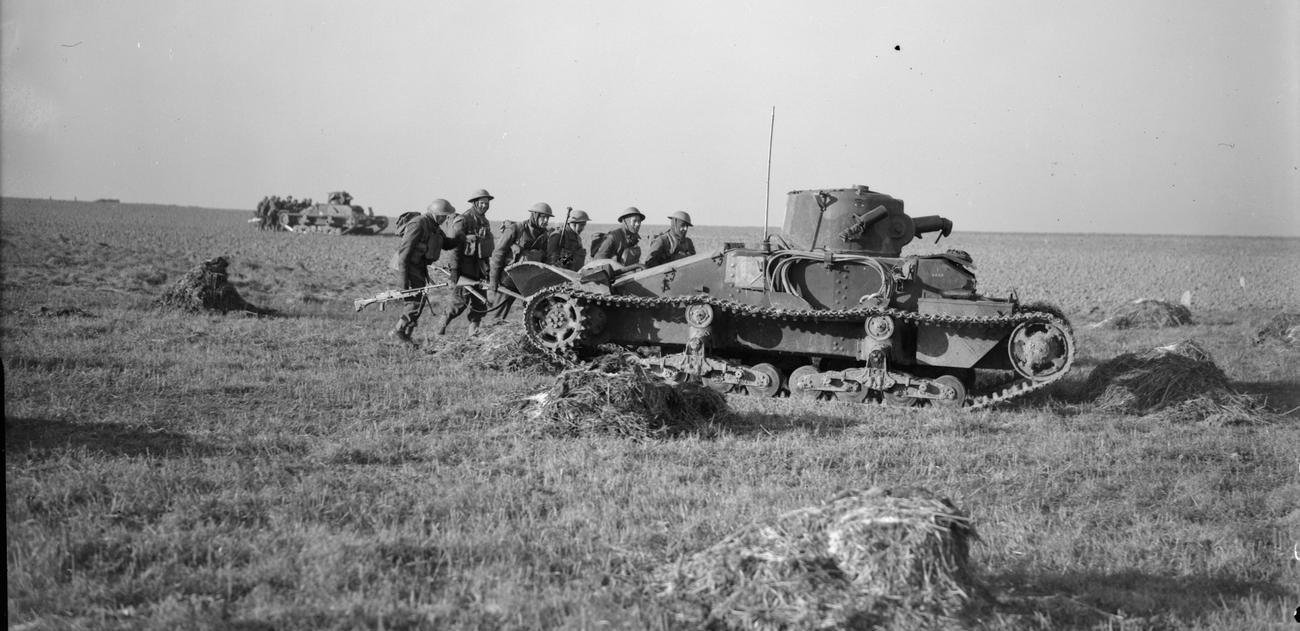

Matilda I tanks with infantry during an exercise near Hébuterne, 11 January 1940.Lt Kessell / Imperial War Museums F 2105; UK Government public-domain status.Image source

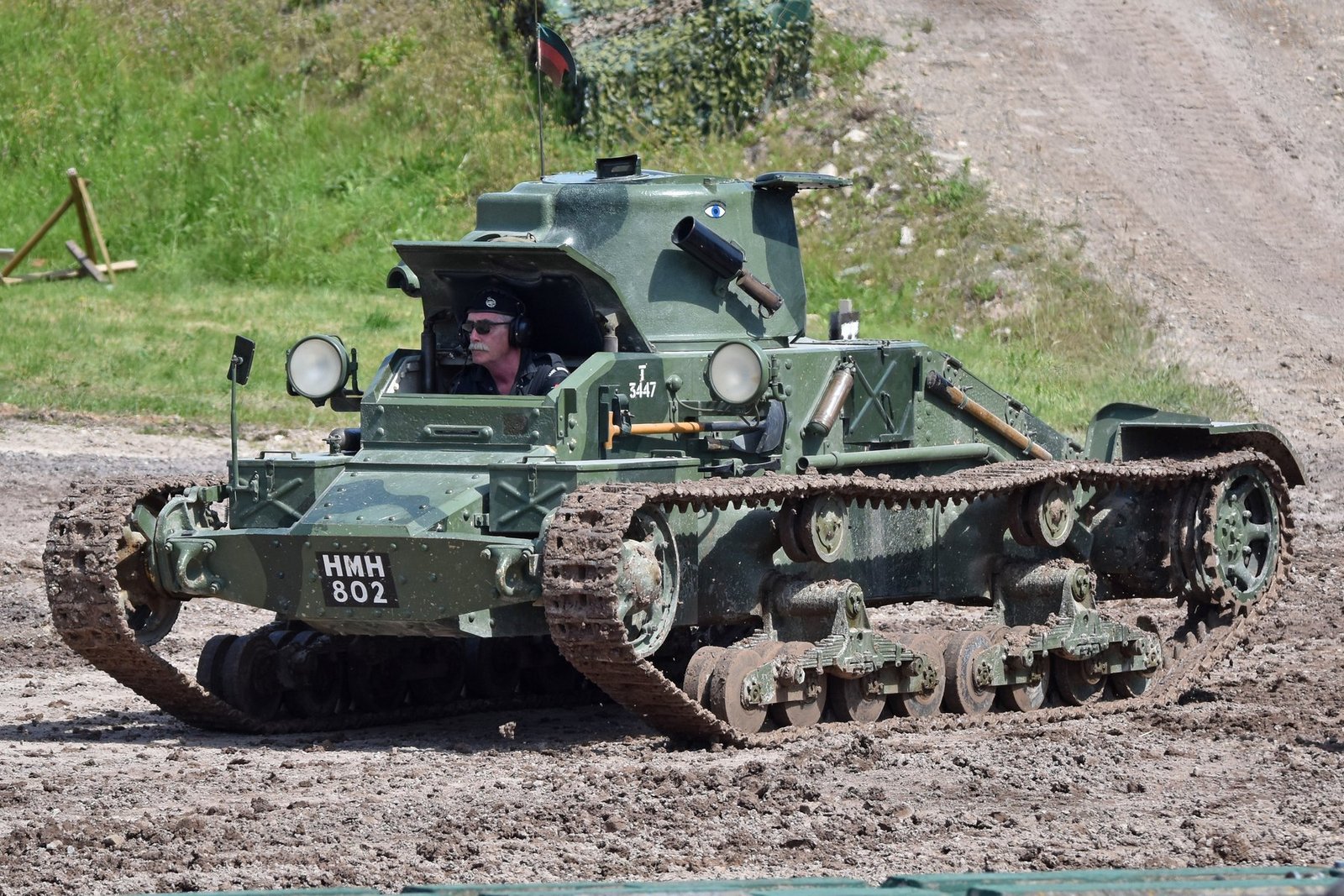

Running Matilda I HMH802 / T3447 at Tankfest, 29 June 2019; the restored vehicle uses replacement engine and gearbox components.Alan Wilson, 29 June 2019; Wikimedia Commons; CC BY-SA 2.0.Image source·CC BY-SA 2.0

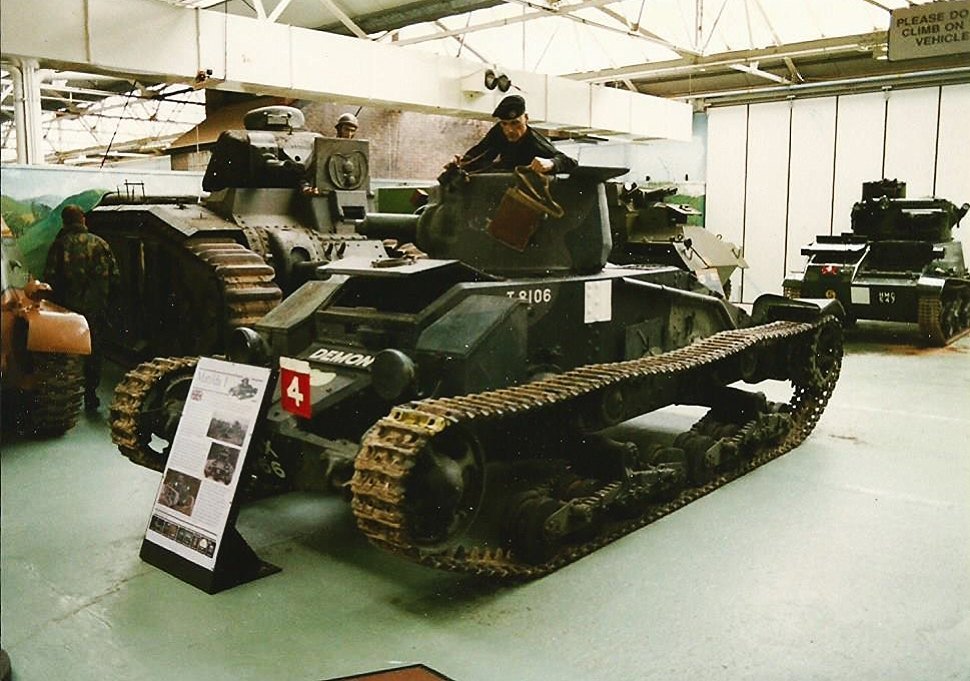

Matilda I displayed as “Demon” at Bovington; museum display history is separate from the vehicle’s wartime/training history.Hugh Llewelyn; Wikimedia Commons; CC BY-SA 2.0 as recorded by the source.Image source·CC BY-SA 2.0
