Overview and identity
The Cruiser Tank Mk I, commonly called A9, was an early British production cruiser intended to combine mobility and anti-tank firepower at a price compatible with interwar budgets. Its central gun turret and two smaller machine-gun turrets gave it a distinctive appearance. The vehicle is described as an important transitional design rather than a successful answer to every requirement of mobile warfare: its useful gun and relatively high road speed were accompanied by thin protection, a large crew and mechanical limitations. Sources
The principal family members are the A9E1 prototype, the production 2-pounder tank and the close-support A9 CS. The cited accounts entries under both Cruiser A9 and Cruiser Mk I refer to overlapping identities, not separate production programs. Similarly, a duplicate CS record is an indexing issue. The A10 and later cruiser designs provide essential context, but their manufacture does not add to the A9 total. Sources
Requirements and development
The project emerged from a search for a less expensive medium or cruiser tank. Mobility, an effective anti-tank weapon and affordable manufacture were central concerns. Commercially derived automotive equipment offered one route to keeping costs down, while the multiple-turret arrangement retained an older conception of distributing machine-gun fire around the hull. The resulting vehicle was an interim step between interwar experimentation and the more specialized cruiser designs that followed. Sources
Accounts place the formal requirement in June 1934 and the A9E1 prototype in 1936. It associates the project with Vickers, John Carden and Leslie Little, while treating some detailed attribution as dependent on secondary literature. Trials included changes to the powerplant and attention to excessive weight, suspension and track problems. The production tank differed in hull-front arrangement, visibility and other fittings. Reports of an unsuccessful underwater experiment concern the prototype; they do not make the standard A9 a watertight or amphibious vehicle. Sources
Layout, protection and crew
A central gun turret dominated the upper hull. Forward of it, two small machine-gun turrets flanked the driver's position. The six-man crew comprised the commander, gunner, loader, driver and two machine gunners. Those additional stations increased the number of men to accommodate and coordinate inside a lightly protected hull; they are distinct from a larger main-turret crew. Sources
Protection was modest. The source describes predominantly flat bolted or riveted plates and gives roughly 6–14 mm as the armor range. A maximum-thickness figure is not a description of every plate or an assurance of survival against anti-tank fire. Accounts emphasize cramped stations, vulnerable openings and the exposed complexity of the forward arrangement. Its references to powered main-turret traverse remain unconfirmed before presenting a precise first-in-service claim or a universal mechanism specification. Sources
Armament and communications
The normal production vehicle mounted a 40 mm 2-pounder gun and three.303-inch Vickers machine guns: one associated with the main turret and one in each forward turret. The account regards the gun as useful against early armored opponents, but notes the absence of a useful high-explosive capability in the relevant service context. The gun tank therefore is not established as equally suited to every infantry-support target. Sources
The close-support version substituted a howitzer and emphasized smoke provision, with an additional high-explosive allowance reported in the available evidence. Its exact ammunition mix remains a manual-level question, not a value to borrow from a later British close-support tank. The normal gun-tank figures of approximately 100 main-gun rounds and 3,000 machine-gun rounds also retain their source qualifications. Wireless equipment is part of the development and service account, but The available evidence does not establish every vehicle's radio fit, aerial arrangement or sight model. Sources
Automotive performance and reliability
The production powerplant is identified as an AEC A179 petrol engine of about 150 hp, with five forward gears and one reverse. The bogie suspension and its springing differs from the Christie system used on later cruiser families. The source gives approximately 25 mph on roads and lower cross-country performance, but these are specification values rather than a promise of sustained campaign speed. Sources
Reliability assessments vary with setting. Accounts record poor mechanical results in some French operations but more favorable comments on the engine in desert service. That disagreement remains unresolved rather than being compressed into a single verdict. Track retention, suspension behavior, cooling, maintenance access and the availability of spares all belong to the readiness story. A mobile tank on a specification sheet could still become unavailable through breakdown, transport difficulties or damage that a unit could not repair promptly. Sources
Production and configuration accounting
The working production total is 125, divided in the cited sources between 50 Vickers vehicles and 75 from Harland & Wolff. This is a manufacturing total, not a count of tanks ready for action in a particular month. Sources
Design and prototype work preceded the principal production deliveries. The source distinguishes ordering or acceptance during 1937–1938 from deliveries chiefly in 1939–1940, while noting accounts that carry completion into 1941. Factory-specific statements and broader summaries cannot be silently reconciled by choosing the latest date. No complete cost series or monthly acceptance ledger is established here. Museum custody in Britain or India likewise does not, on its own, establish the latter country as an operational A9 user. Sources
Service and historical assessment
Accounts place the A9 in the 1940 French campaign, including the commitment at Calais, and in British operations in the Middle East. Its cited Tank Museum account gives 24 A9s lost in the Calais fighting and 70 sent to the Middle East. Those statements require their own definitions and context: losses in one operation, theater shipments and total manufacture are not interchangeable measures. Sources
The desert narrative includes the early cruiser battles and later service through 1941. References to Greece are less secure at the A9 unit-and-vehicle level and remain qualified rather than being converted into a detailed deployment claim. The A9's significance lies in the practical move toward a cruiser force and the compromises that move exposed. It combined a useful anti-tank gun with mobility, but its protection and multi-turret arrangement imposed substantial limitations. Surviving examples and restored finishes can illustrate its design only when their individual histories are kept separate from combat photographs. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- [S1] — The Tank Museum — "A9 Cruiser" collection page.
- [S2] — Imperial War Museums — "Britain's Struggle To Build Effective Tanks During WW2."
- [S3] — Rickard, J. / History of War — "Cruiser Tank Mk I (A9)," 10 February 2012.
- [S4] — Armor Archives — "The First Cruiser," 5 January 2019.
- [S5] — Ralph Zuljan / OnWar — "Cruiser Tank Mark I."
- [S6] — Tank-AFV / Tank Encyclopedia network — "A9 Cruiser Mk.I (1937)." and "A.9, Cruiser Mk.I."
- [S6] — Tank-AFV / Tank Encyclopedia network — "A9 Cruiser Mk.I (1937)." and "A.9, Cruiser Mk.I."
- [IMG1] — Wikimedia Commons / IWM E 101 — "Cruiser tank Mk I Egypt May 1940 IWM E 101.jpg."
- [IMG2] — Wikimedia Commons / IWM E 100 — "Turret crew of a 1st Royal Tank Regiment A9 Cruiser Mk I tank at Abbasia, Egypt, 30 May 1940. E100.jpg."

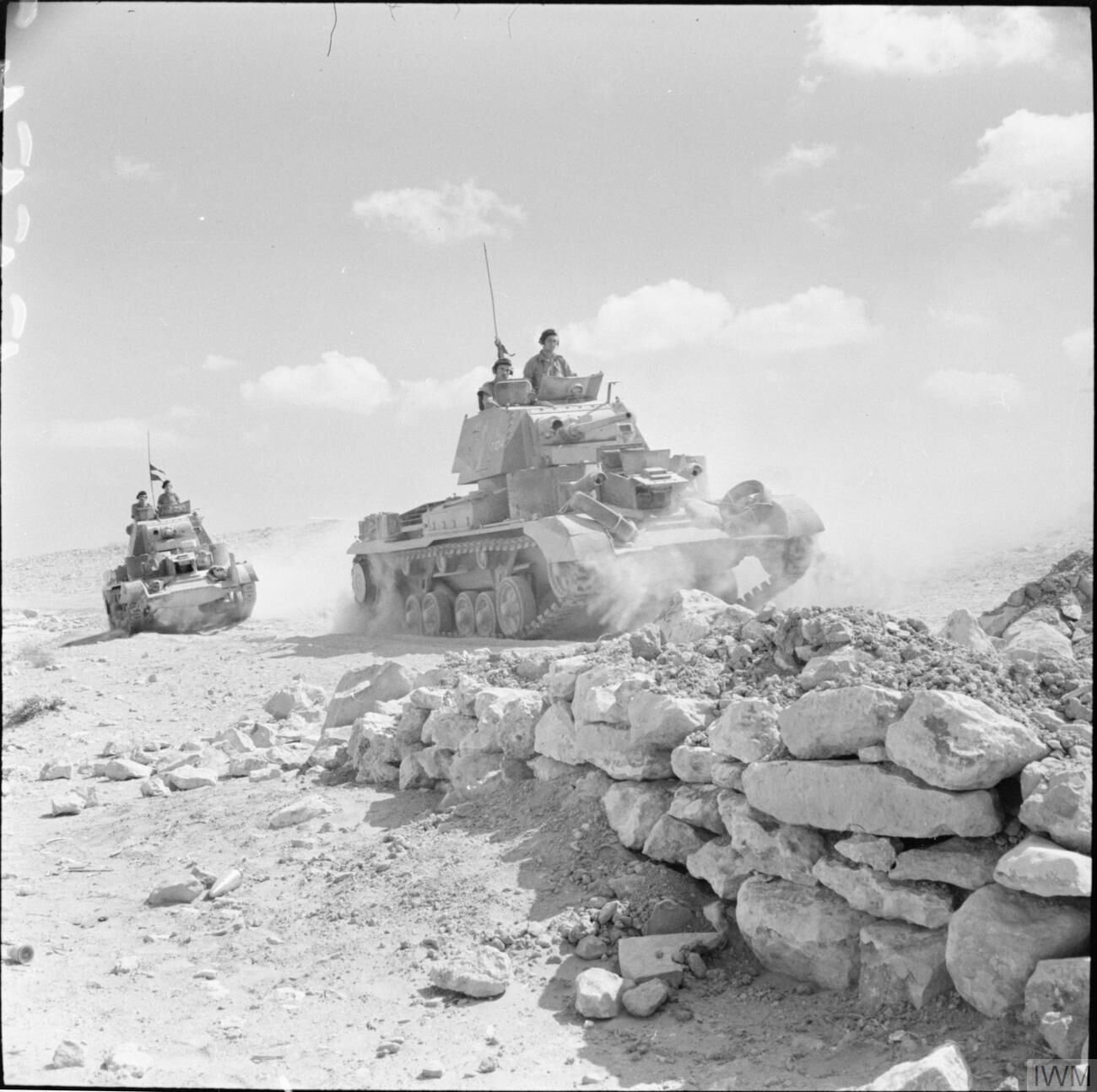

- [IMG3] — Wikimedia Commons / IWM E 5547 — "The British Army in North Africa 1941 E5547.jpg."
- [IMG4] — Wikimedia Commons / Hugh Llewelyn — "Cruiser Tank Mk.I, A9 Mk.I (23122976304).jpg."
