Char B1 / B1 bis / B1 ter

Char B1bis Rhône at Musée des Blindés,Saumur,photographed11July2022.Alan Wilson; Commons/Flickr; CC BY-SA 2.0.Image source

A family built around two principal weapons

The Char B1 family combined a hull-mounted 75 mm weapon with a smaller gun in a rotating turret. It grew from a French battle-tank requirement and reached service in several materially different forms. The B1, B1 bis, and B1 ter had related designs but distinct protection, turrets, and development histories. Sources

The B1 bis became the principal production form, while the B1 ter remained a development project. Captured German vehicles and later specialized conversions add another layer to the family history. A flame conversion, self-propelled artillery adaptation, or recovered post-liberation vehicle may deserve a related article, but it does not add a newly manufactured French tank to the original production total. The account also contains overlapping Published accounts describe from different research phases; those overlaps are retained for mapping rather than silently counted twice. Sources

From the battle-tank requirement to B1 production

The account traces the requirement to Estienne's 1921 battle-tank program. The concept emphasized a powerful hull weapon for attacking defended positions and a turret weapon that could address other targets. Integrating that arrangement, its steering system, armor, and industrial production took years. The account distinguishes competing heavier proposals from the vehicle that ultimately became the B1. Sources

Trials at Mourmelon in 1931 and adoption in 1934 are separate milestones from subsequent series deliveries. The original B1 combined its hull gun with the APX 1 turret and early 47 mm armament, with armor generally described as reaching 40 mm. The later B1 bis increased protection and used the APX 4 turret with the more capable SA 35 gun. Changes to armament and protection were substantial; they cannot be inferred solely from a shared hull silhouette. Sources

The B1 ter sought further development, including thicker protection and changes affecting operation of the hull gun. Proposed production arrangements and turret plans are separate from the equipment actually fitted to prototypes. The published surviving-construction and evacuation questions prevent a simple assertion that every proposed feature existed in a completed service tank. Sources

The hull gun and steering system

The 75 mm gun sat low in the hull with a restricted horizontal field. The driver helped aim it by positioning the vehicle, making steering precision a fighting requirement rather than merely a mobility feature. The Naeder system is therefore central to understanding the design. Accounts describe an arrangement in which driving and gun laying were closely connected, rather than a conventional independently traversing hull turret. Sources

The tank's long track runs, suspension, hull layout, and rear automotive compartment served a heavily protected fighting vehicle, but they also introduced maintenance demands. Lubrication, adjustment, cooling, and access mattered to unit readiness. Its silhouette alone does not explain either its tactical potential or its support burden. Sources

Crew, turret, protection, and ammunition

The standard B1/B1 bis fighting crew numbered four. The commander in the turret nevertheless carried a substantial workload, combining observation, command, and operation of the turret gun. Adding a hull gun did not remove that concentration of duties. Published accounts describe the one-man turret as an important operational constraint even when the tank's armor and weapons compared favorably with opponents. Sources

The B1 bis is generally associated with about 60 mm frontal and 55 mm side protection, while the B1 had a thinner scheme and the B1 ter proposed further increases. Likewise, the 75 mm and 47 mm ammunition capacities are not automatically identical across turret installations and batches. Sources

Automotive figures around 300–307 horsepower for the B1 bis and published road speeds in the mid-to-upper twenties of kilometers per hour describe nominal capability, not continuous tactical endurance. Fuel availability, maintenance, road movement, and the recovery of damaged vehicles shaped actual operations. Radio models and the chronology of equipment changes are not fully established. Sources

Orders, deliveries, and disputed totals

The account separates large production orders from the smaller number completed before the collapse of 1940. For B1 bis it records 1,144 ordered and 369 built, together with a rapidly changing delivery rate. Late production was complicated by hull completion, turret availability, and differing definitions of a completed tank. These categories remains unconfirmed before reproducing a single unqualified delivery total. Sources

The broader family count is not fully reconciled. The available evidence includes 34 or 35 original B1s depending on how prototypes are treated, a family total around 405 in one account, and separate B1 ter prototype claims. Those assertions cannot be made consistent simply by adding an undocumented vehicle. Prototypes, accepted vehicles, deliveries, conversions, and incomplete hulls account for different parts of the production record. The original figures remain available in published figures while that work proceeds. Sources

French combat and later use

The B1 and B1 bis served with French armored formations in 1940. Their protection and weapons could be formidable in local engagements, but tactical outcomes also depended on reconnaissance, coordination, fuel, repair, and recovery. Accounts describe the gap between individual fighting strength and the ability to keep armored units operating coherently through a fast-moving campaign. Sources

The account of Eure at Stonne is a notable example of the vehicle's combat reputation. Older B1s also are separate questions, including later weapon changes and worn mechanical condition. Rearmament did not automatically turn an original B1 into a newly built B1 bis. Sources

Captured vehicles entered German inventories and specialized roles under German designations. Published accounts describe French recovery and reuse after liberation, including the re-formed 13e Dragons and fighting in 1945. Numbers recovered, restored, allocated, and actually operational remain distinct accounting questions. Sources

Variant coverage and photographs

The original B1, production B1 bis, and experimental B1 ter were distinct stages in the family, separate from later conversions. German flamethrower and artillery conversions performed different roles from the original gun tanks. Individual names such as Ouragan or Béarn identify particular vehicles and histories, not automatically additional variants. Sources

The images favor the B1 bis and a German flame conversion. Two images concern Béarn II in different media, rather than documenting two different tanks or providing an interior view. The museum photograph is a modern display record, while a wartime photograph of a captured vehicle answers a different historical question. Missing photographs of the original B1, B1 ter, or interior remain genuine gaps even though the family already has several usable-looking exterior images. Sources

Assessment

The family illustrates a demanding balance between protection, armament, crew workload, and mechanical support. Its powerful local fighting capability does not justify a claim that it was tactically invulnerable, and the defeat of France does not make every individual action a technical failure. The published comparative assessment is strongest when those levels are kept separate. Sources

That approach leaves room for detailed variant and combat articles without substituting dramatic anecdotes for a verified production and operational history. Sources

Photographs and image credits

Background reading and references. Each photograph has its own source and credit.

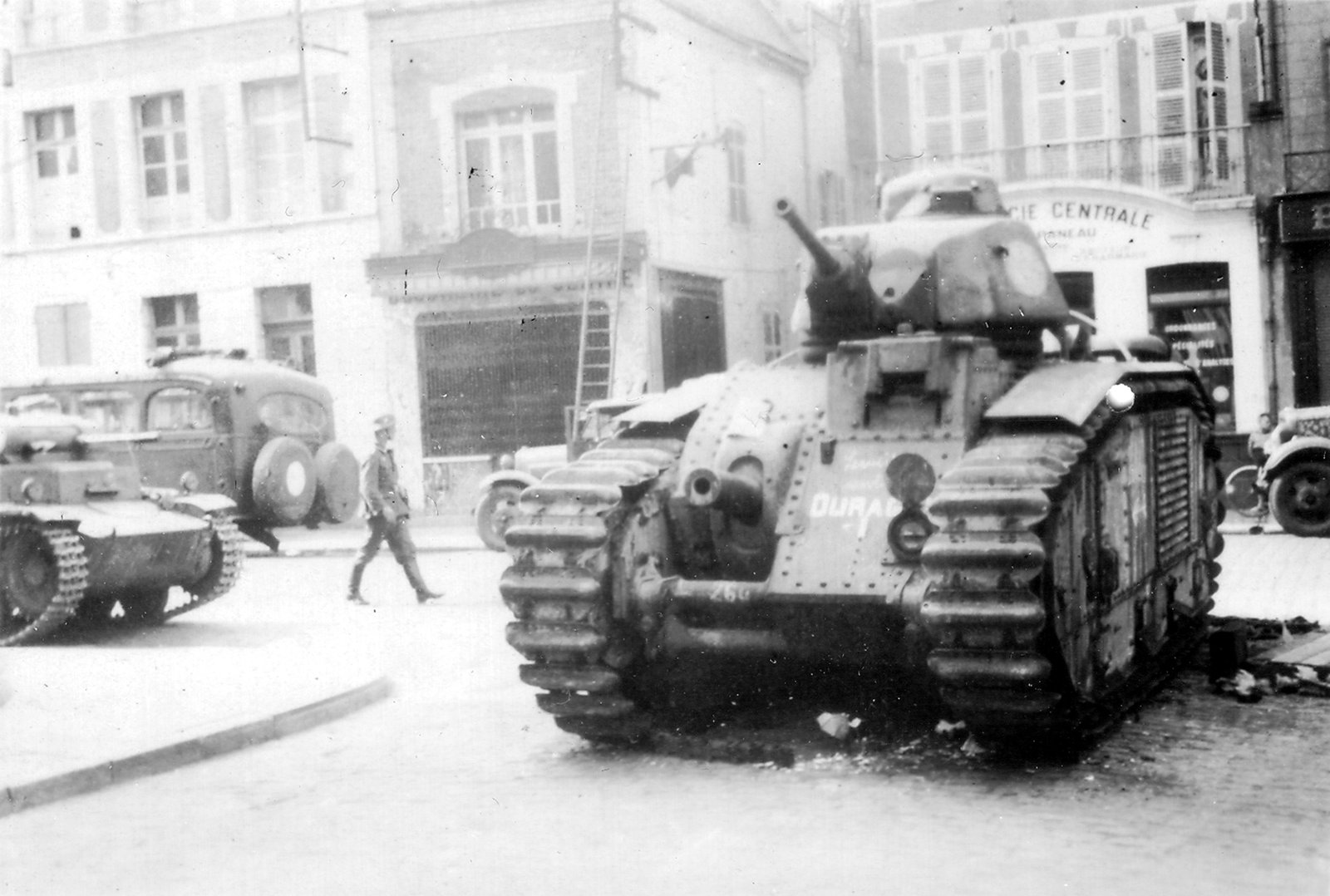

B1bis260 Ouragan,identified by its source at Guise in1940 after capture.Unknown photographer; Conseil Régional de Basse-Normandie/NARA source chain; custom attribution-required reuse statement.Image source

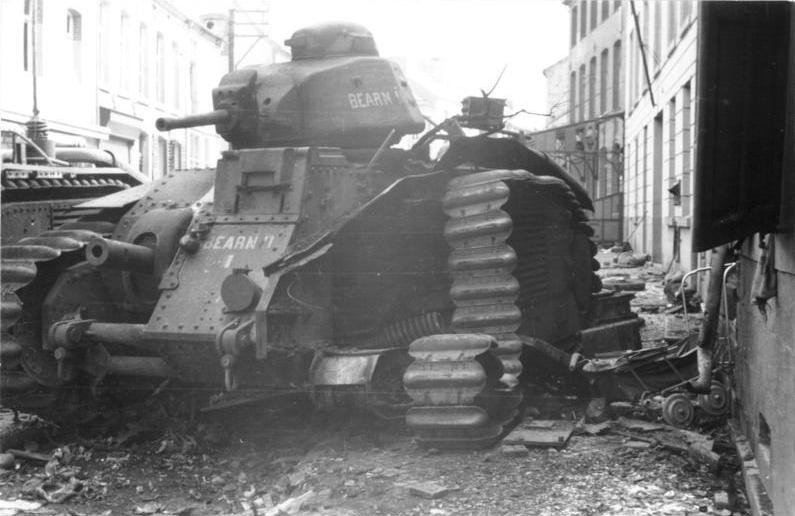

B1-family vehicle Béarn II at Beaumont, Belgium, May 1940, as identified in the Bundesarchiv-derived file record; the image does not establish the cause of damage.Bundesarchiv, Bild101I-125-0277-09 / Fremke,Heinz / CC BY-SA 3.0 Germany.Image source

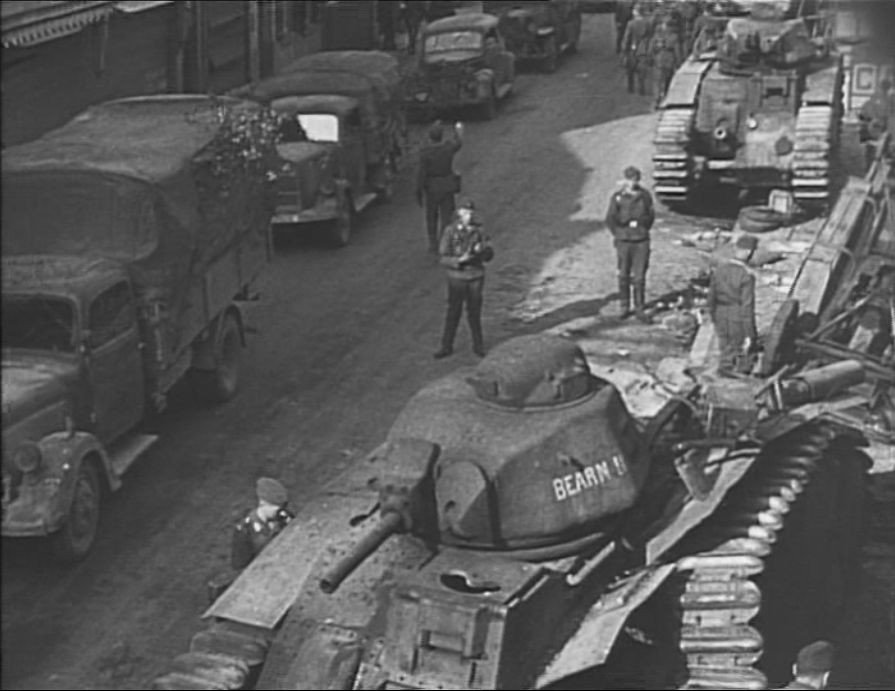

Abandoned B1 bis tanks at Beaumont in May 1940, reproduced as a still from a later U.S. War Department film; event date and film-release date are distinct.U.S. War Department film reproduction via Commons; underlying footage provenance/public-domain status is attributed to the cited source.Image source
