A light tank arriving in a changing war
The Carro Armato L6/40 was Italy’s effort to move beyond machine-gun tankettes toward a small, gun-armed vehicle suited to reconnaissance and supporting roles. It combined a rotating turret, a 20 mm automatic cannon and a two-man crew in a compact riveted hull. Its name identifies an Italian light tank associated with the six-ton class and the 1940 designation, not an exact combat weight or proof that all operational units received it that year. The protected research sequence’s 1939 placement is likewise not a substitute for an established service-entry date. Sources
Timing shaped its reputation. By the time substantial numbers reached wartime units, the original light-tank concept faced much stronger antitank weapons and larger opposing tanks. That does not make every reconnaissance or security task meaningless, but it limits what can reasonably be claimed for the vehicle in direct combat. The L6/40's capabilities and limitations depended on its role and the stage of the war in which it served. Its relationship to the later Semovente da 47/32 is important, while the gun carrier remains a distinct derivative rather than an interchangeable name for the turreted tank. Sources
Development and delayed fielding
The account traces the L6/40 through experimental Italian light-tank work in the mid-1930s. Trial arrangements included different armaments and turret or hull layouts before the familiar small cannon-armed turret emerged. Those experimental forms belong to development history; incomplete evidence for them cannot establish a precise total of finished prototypes or a catalog of operational production variants. The shift from concept to standard tank involved both design choices and industrial preparation. Sources
The chronology becomes especially sensitive around production and delivery. The accounts record earlier service or delivery claims alongside an account of production-related work and tank availability in 1942. Adoption, factory completion, army acceptance and first combat are different events, so conflicting dates cannot be resolved merely by selecting the earliest one. Italian industrial organization also divided responsibility for hull manufacture and assembly. The tank’s eventual battlefield environment was not the one in which the original requirement had been formed. A sound history therefore ties each date to an event, a source and a clearly identified vehicle configuration. Sources
Two crew and a small automatic cannon
The L6/40’s compact size came with a demanding crew arrangement. One man drove while the commander worked in the turret, combining command and observation with the use of the weapons. A rotating turret provided a much broader field of fire than the fixed armament of a tankette, but it did not eliminate the practical burden of a one-man fighting position. Crew workload helps explain why nominal weapon performance alone is an incomplete measure of effectiveness. Sources
The standard turret carried a 20 mm Breda cannon and an 8 mm machine gun. Armor was riveted and relatively light, with disagreement over the maximum figure and how a mantlet measurement relates to the rest of the vehicle. The presence of a thick local component does not establish equal protection over the entire hull and turret. Sources
Automotive design and production totals
The tank used a small petrol engine and a torsion-bar suspension arrangement, with the account recording related engine designations and power figures around the high sixties in horsepower. Those naming differences remains unconfirmed against the installed engine rather than silently standardized. Published road speed and range describe favorable operating conditions; they do not establish sustained performance over rough ground or under the maintenance demands of a campaign. Radio fit is another unresolved point: the existence of a radio version does not prove that every standard tank carried the same equipment. Sources
L6/40 production totals vary considerably. Figures of 283 and 432, and accounts combining pre-armistice with German-period output, may describe different periods or categories. Orders, first-series figures, and deliveries can overlap. Related Semovente vehicles and conversions further complicate the totals. Sources
Service across several theaters

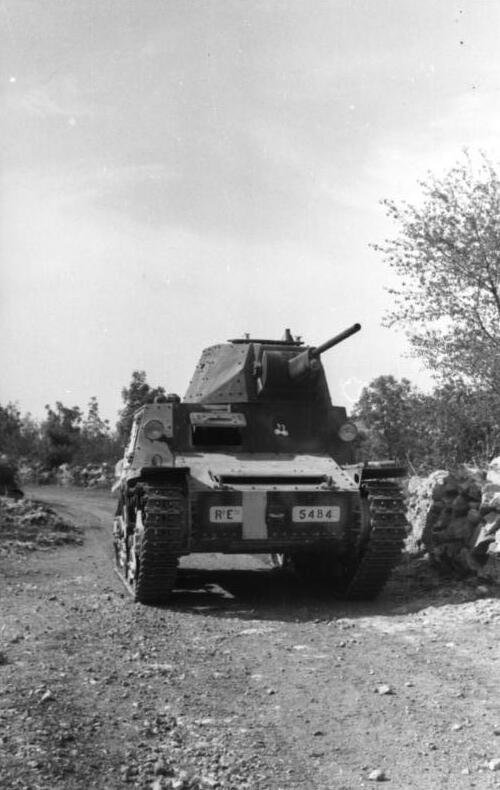

L6/40s served in North Africa, on the Eastern Front and in the Balkans, environments that placed different demands on a very small tank. Reconnaissance, security and support tasks did not require identical performance to an armored breakthrough, yet units could still encounter weapons well beyond the tank’s ability to resist. The published assessment is therefore strongest when it links limitations to a specific role rather than assuming that a light tank was intended to duplicate a medium tank in every engagement. Sources

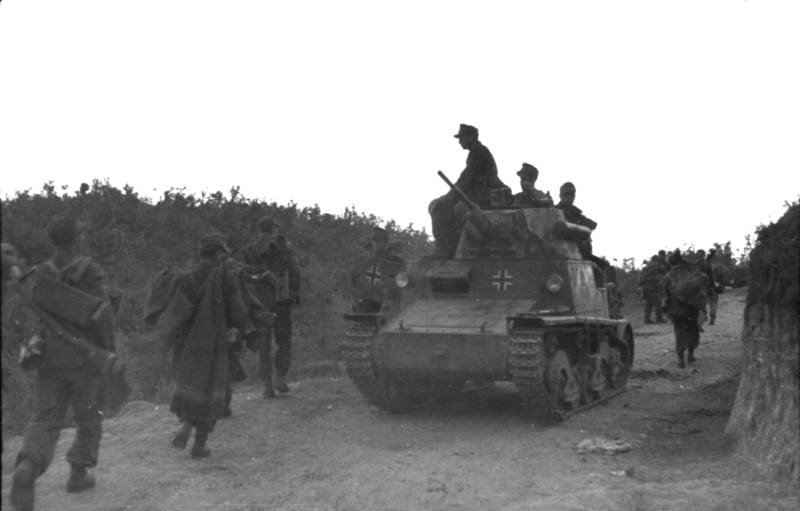

The Italian armistice introduced additional service contexts. Captured vehicles and German or Italian Social Republic use belong in the operator history, but markings applied after capture do not create a new production variant. Broad claims about quantities in each captured fleet, later police use or individual units require more than a photograph of one vehicle. Service grouping, ownership, equipment modification and new manufacture are four separate categories that remains separate in the archive. Sources
Derivatives and an evidence-led assessment
The L6/40 illustrates a recurring light-tank problem: a compact, economical design can become available only after the battlefield has outgrown its original protection and armament. Its turret and cannon represented progress beyond the earlier tankette approach, while its two-man crew and limited growth potential constrained further improvement. The chassis nevertheless supported other roles. That usefulness does not justify describing every derivative as an improved version of the same turreted fighting tank. Sources
The Semovente da 47/32, radio or command arrangements, a flamethrower experiment and ammunition-carrying adaptations require separate status labels. A photographed prototype cannot prove fleet-wide adoption, and a command version of the Semovente is not automatically the same thing as an L6/40 Centro Radio. Museum photographs are valuable for shape and preserved components but cannot settle wartime radio fit, production totals or original paint. Sources
Photographs and image credits
Background reading and references. Each photograph has its own source and credit.
Sources and further reading
Background reading and references. Each photograph has its own source and credit.
- [TE-L6] Tank Encyclopedia, Arturo Giusti and MarkoPantelic, "Carro Armato Leggero L6/40", 29 June 2022.
- [TA-L6] Armor Archives, "The Tankette's Late Successor", 19 October 2019.
- [WW2DB-L6] World War II Database, "L6/40 Light Tank".
- [LoneSentry-L6] Lone Sentry, "Carro Armato Fiat L6/40: Italian Tanks and AFVs of World War II".
- [TA-Semovente] Armor Archives, "Semovente L40 da 47/32: Italy's Smallest SPG", 18 August 2018.
- [TE-Semovente] Tank Encyclopedia, "Semovente L40 da 47/32".
- [TM-E-30-420] U.S. War Department, Military Intelligence Service, TM E 30-420 Handbook on the Italian Military Forces, 3 August 1943, Internet Archive public-domain item.
